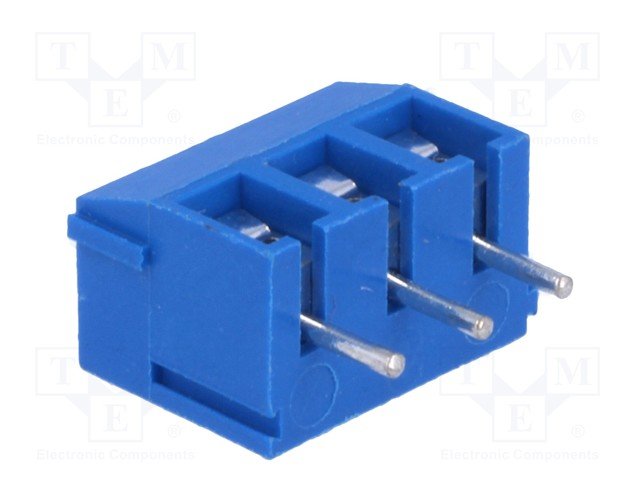

Apraksts

• Manufacturer NINIGI
• Type of connector PCB terminal block
• Spatial orientation  angled 90°
• Contacts pitch 3.81mm
• Number of ways 3
• Mechanical mounting on PCBs
• Electrical mounting THT,  screw terminal
• Connector variant with wire protector
• Connector terminal
• Contact plating tinned
• Current rating 10A
• Height 8.5mm
• Colour blue
• Rated voltage  250V
• Body material PBT
• Connectors features assembling possibility
• Length 11.4mm
• Contact material brass
• Operating temperature -30...120°C
• Depth 7mm
• Flammability rating UL94V-0
• Type of pin configuration 1x3
• Wire cross section 0.5mm2

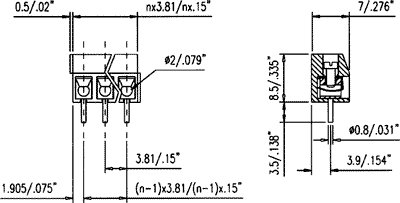

• Dimensions see
• Additional information
• Gross weight: 1.533 g
• Manufacturer part number: TB-3.8-P-3P-BL

Parametri

3
Taisns
3.81mm
Aizspiednis kontakts PCB
Terminal blocks PCB
