Apraksts

• Manufacturer NINIGI
• Switch type slide
• Stable positions number 1-position
• Contacts configuration SPDT
• AC contacts rating
• (at resistance load) 5 A / 120 VAC
• DC contacts rating
• (at resistance load) 5 A / 28 VDC
• Switching method ON-(ON)
• Number of terminals 3
• Leads for soldering

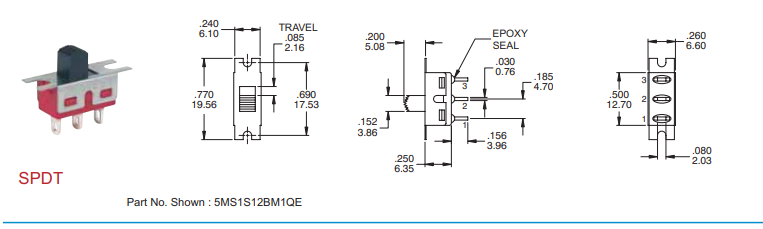

• Body dimensions 19.56 x 6.1 x 6.35mm
• Number of positions 2
• Operating temperature -30...85°C
• Mounting screw type
• Knob height 5.08mm
• Min. insulation resistance 1000MΩ
• Mechanical durability 30000cycles
• Switches features with mounting tabs

Parametri

SPDT
1
ON-(ON)
2
5A/120VAC
5A/28VDC

Papildu dokumentācija
