Apraksts

• Specification
• Relay type electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 24V DC
• AC contacts rating
• (at resistance load) 5 A / 250 VAC
• DC contacts rating
• (at resistance load) 5 A / 30 VDC
• Contact current max. 5A
• Switched voltage max 150V DC, max 250V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 2.88kΩ;
• Coil voltage min. 18V DC
• Operate time 8ms
• Body dimensions 17.5 x 10 x 12.5mm
• Release time 4ms
• Coil power consumption 200mW
• Operating temperature -40...70°C
• Relay series JV
• Contact resistance 70mΩ;
• Contact material AgSnO2
• Contacts pitch 6.35mm

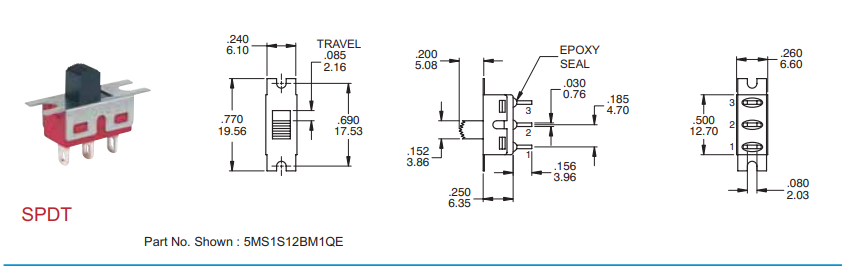

Parametri

SPDT
5A/120VAC
5A/28VDC
1
ON-ON
2
