Apraksts

• Manufacturer ECE
• Type of switch slide
• Number of positions 2
• Contacts configuration  SPDT
• DC contacts rating @R  0.5A / 12V DC
• Switching method  ON-ON
• Number of terminals 3
• Mounting THT
• Leads for PCB,  straight
• Operating temperature -40...85°C

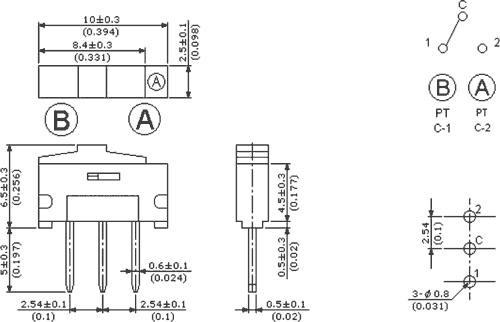

• Body dimensions 10x2.5x6.5mm
• Min. insulation resistance 10000MΩ
• Max. contact resistance: 30mΩ
• Knob height 2mm
• Terminal pitch 2.54mm
• Flammability rating UL94V-0
• Stable positions number 2
• Additional information
• Gross weight: 0.256 g
• Manufacturer part number: ESP1010

Parametri

SPDT
5A/12VDC
1
ON-ON
2
