Apraksts

• Specification

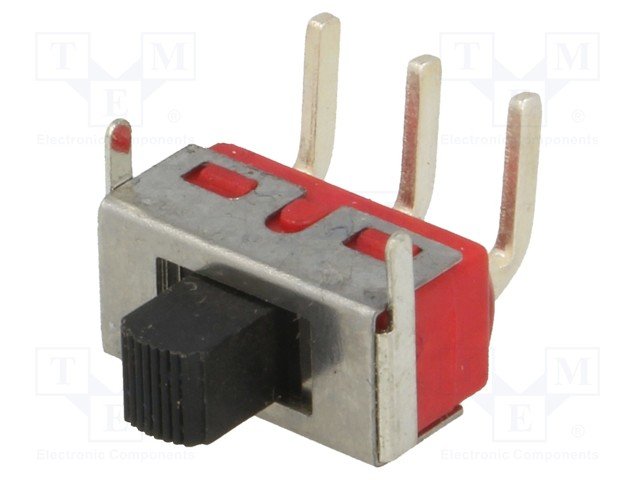

• Switch type slide
• Stable positions number 3-position
• Contacts configuration SP3T
• AC contacts rating
• (at resistance load) 5 A / 120 VAC
• DC contacts rating
• (at resistance load) 5 A / 28 VDC
• Switching method ON-OFF-ON
• Number of terminals 3
• Leads for PCB, angled

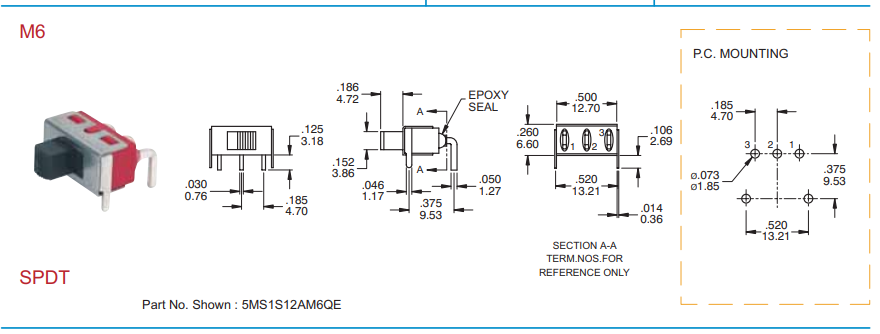

• Body dimensions 12.7 x 6.1 x 6.35mm
• Mounting THT
• Operating temperature -30...85°C
• Knob height 5.08mm
• Number of positions 3
• Min. insulation resistance 1000MΩ;
• Mechanical durability 30000cycles

Parametri

SP3T
5A/120VAC
5A/28VDC
1
ON-OF-ON
3

Papildu dokumentācija
