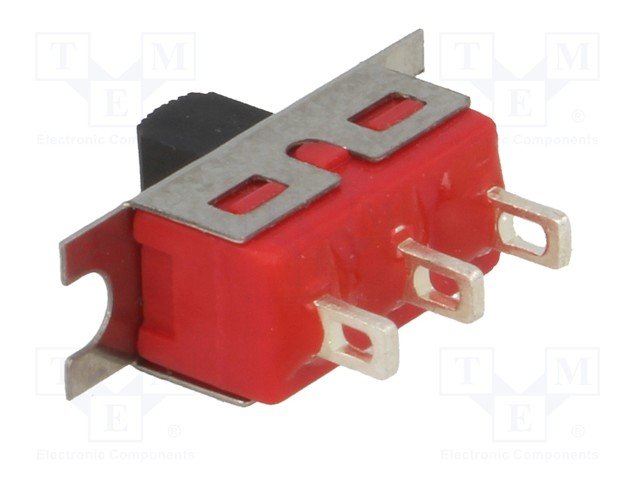

Apraksts

• Type of switch slide
• Number of positions 3
• Contacts configuration  SP3T
• AC contacts rating @R  2A / 250V AC
• DC contacts rating @R  5A / 28V DC
• Switching method  ON-OFF-ON
• Number of terminals 3
• Mounting screw type
• Leads for soldering
• Operating temperature -30...85°C

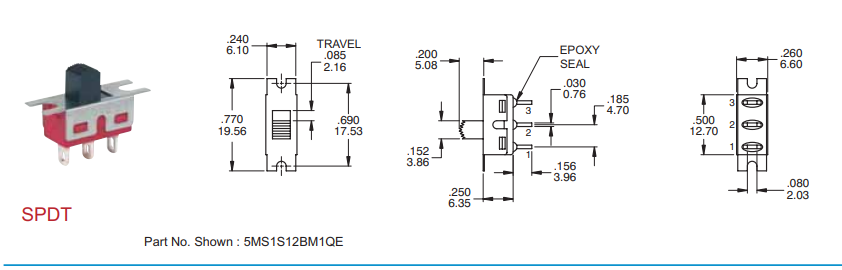

• Body dimensions 19.56x6.1x6.35mm
• Min. insulation resistance 1000MΩ
• Knob height 5.08mm
• Terminal pitch 4.7mm
• Mechanical durability 30000 cycles
• Switches features with mounting tabs
• Stable positions number 3
• Additional information
• Gross weight: 1.433 g

Parametri

SP3T
2A/250VAC
5A/28VDC
1
ON-OF-ON
3

Papildu dokumentācija
