Apraksts

• Manufacturer NINIGI

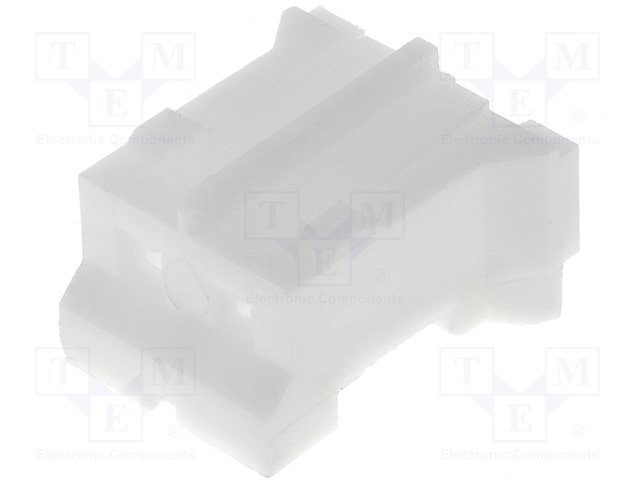

• Connector plug
• Connector type wire-board
• Connector type female
• Number of pins 2
• Connector variant w/o terminals
• Contacts pitch 2mm
• Mechanical mounting for cable
• Connector series NXG
• Flammability rating UL94V-0
• Operating temperature -25...85°C
• Type of pin configuration 1x2
• Max. operating voltage 100V
• Enclosure material polyamide
• Width 5.8mm
• A dimension 2mm

Parametri

Vadam
2
Ligzda
2mm
Uz vadu
