Apraksts

• Specification

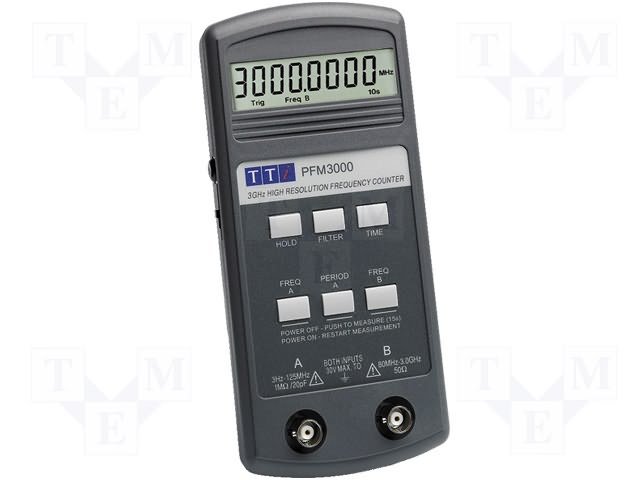

• Meter type RF frequency meter
• Frequency frequency resolution: 0,001 mHz, range: 3 Hz...3 GHz
• Display LCD 8,5 digit
• Input impedance 1MΩ;/20pF (3 Hz...125 MHz), 50Ω; (80 MHz...3 GHz)
• Battery life ~20h
• Power supply 1 battery 9V 6F22, must be ordered separately
• Weight 190g
• Dimensions 178 x 81 x 30mm
• Features:
• high sensitivity
• frequency and period measurement
• selectable measurement time (0,1s; 1s; 10s)
• switchable low pass filter (about 50 kHz)
• low battery indicator
• Additional information
• Gross weight:0.24 kg
