Apraksts

• Manufacturer ACP
• Type of potentiometer mounting
• Kind of potentiometer single turn, vertical
• Resistance 5kΩ
• Power 0,1W
• Tolerance ±20%
• Characteristics linear
• Manufacturer series CA6
• Potentiometer standard 6mm
• Mechanical rotation angle 235 ±10°
• Mounting THT
• Track material carbon
• Terminal pitch 5x2,5mm
• Electrical rotation angle 215 ±20°

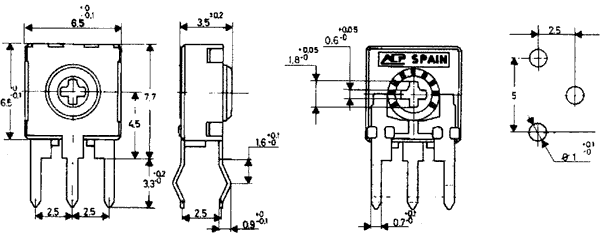

• Body dimensions 6,5x6,5x3,5mm
• Torque 0,2...2Ncm
• Operating temperature -25...70°C
• Operating voltage 100V

Parametri

5K
100mW
THT
Vienapgriezienu

Papildu dokumentācija
