Apraksts

• Manufacturer ACP
• Type of potentiometer mounting
• Kind of potentiometer single turn
• Resistance 5kΩ
• Power 100mW
• Mounting SMD
• Tolerance ±20%
• Characteristics linear

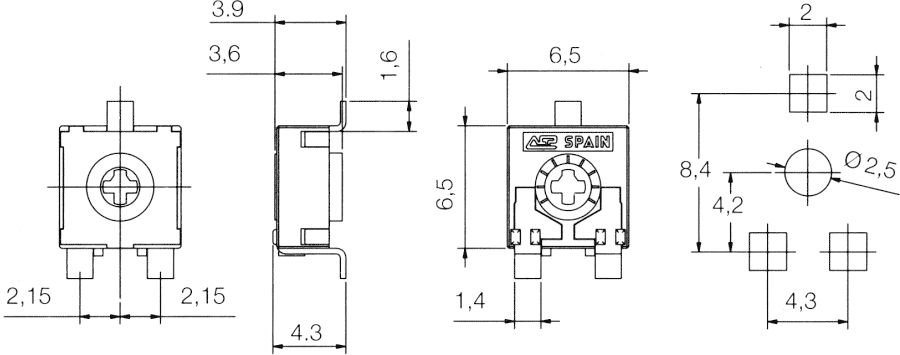

• Body dimensions 6.5x6.5x3.6mm
• Operating temperature -25...70°C
• Track material carbon
• Electrical rotation angle 215 ±20°
• Mechanical rotation angle 235 ±10°
• Torque <2Ncm
• Potentiometer standard 6mm
• Max. operating voltage 100V DC
• Mechanical durability 1000cycles

Parametri

5K
100mW
SMD
Vienapgriezienu
