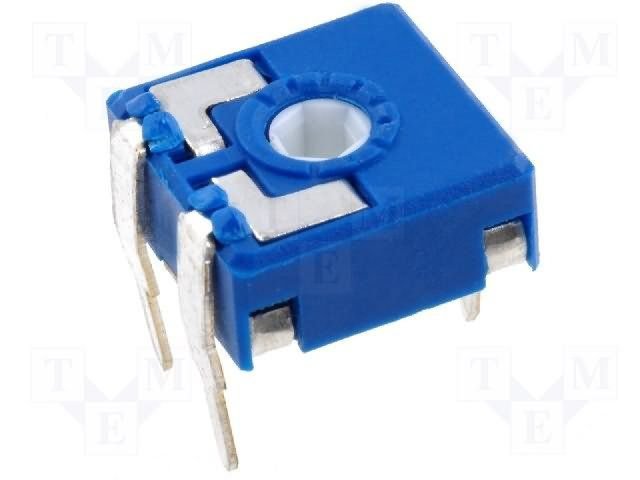

Apraksts

• Manufacturer ACP
• Potentiometer type mounting
• Potentiometer kind single turn, horizontal
• Resistance 500kΩ
• Power 0.15W
• Tolerance ±20%
• Characteristics linear
• Potentiometer series CA9MV
• Potentiometer standard 9mm
• Mechanical rotation angle 240 ±5°
• Torque 0,4...2Ncm
• Max. operating voltage 200V
• Operating temperature -25...70°C
• Mounting THT
• Terminal pitch 5x10mm
• Track material carbon
• Electrical rotation angle 220 ±20°

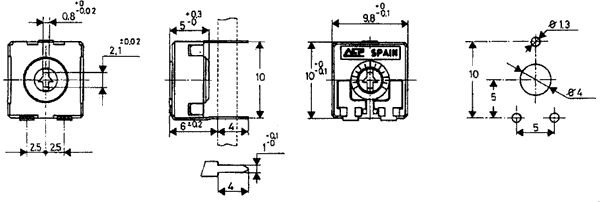

• Body dimensions 10 x 10 x 5mm
• Potentiometer features hexagon hole suitable for shafts and knobs fitting

Parametri

500K
150mW
THT
Vienapgriezienu

Papildu dokumentācija
