Apraksts

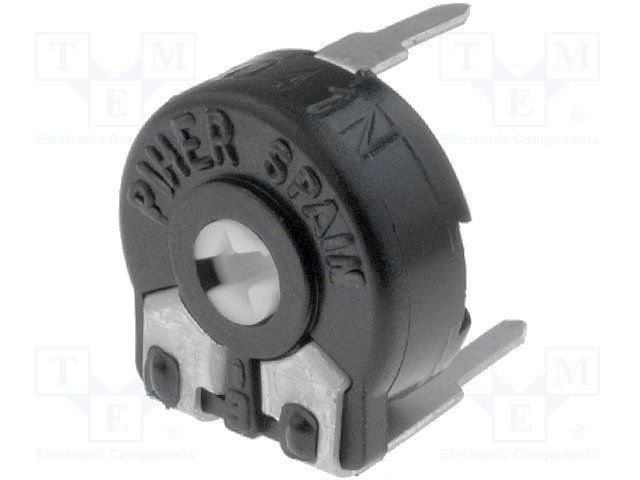

• Manufacturer PIHER
• Type of potentiometer mounting
• Kind of potentiometer single turn, horizontal
• Resistance 1MΩ
• Power 150mW
• Tolerance ±20%
• Characteristics linear
• Potentiometer series PT10LV
• Potentiometer standard 10mm
• Mechanical rotation angle 235 ±5°
• Torque 0,4...2Ncm
• Max. operating voltage 200V
• Operating temperature -25...70°C
• Mounting THT
• Terminal pitch 5x10mm
• Track material carbon
• Electrical rotation angle 220 ±20°

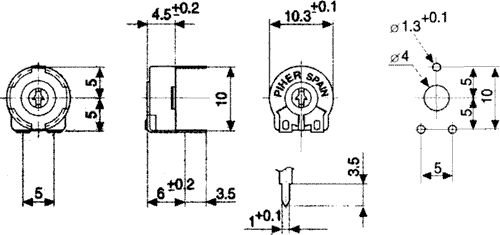

• Body dimensions Ø10.3 x 4.5mm
• Potentiometer features rectangle hole suitable for screwdriver

Parametri

1M
150mW
THT
Vienapgriezienu

Papildu dokumentācija
