Apraksts

• Manufacturer ACP
• Type of potentiometer mounting
• Kind of potentiometer horizontal,  single turn
• Resistance  100kΩ
• Power 0.15W
• Tolerance ±20%
• Characteristics linear
• Potentiometer series CA9V
• Potentiometer standard 9mm
• Mechanical rotation angle 240 ±5°
• Torque 0,4...2Ncm
• Max. operating voltage 200V
• Operating temperature -25...70°C
• Mounting THT
• Terminal pitch 5x10mm
• Track material carbon
• Electrical rotation angle 220 ±20°

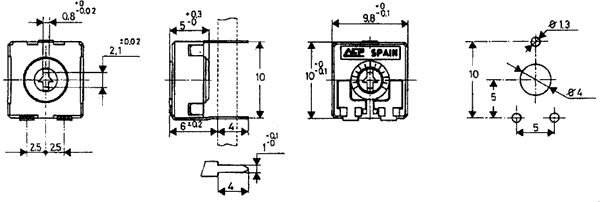

• Body dimensions 10x10x5mm
• Potentiometer features rectangle hole suitable for screwdriver
• Additional information
• Gross weight: 0.71 g
• Manufacturer part number: CA9V 100K

Parametri

100K
150mW
THT
Vienapgriezienu
