Apraksts

• Manufacturer SR PASSIVES
• Type of potentiometer mounting
• Kind of potentiometer single turn,  horizontal
• Resistance  2kΩ
• Power 100mW
• Tolerance ±30%
• Characteristics linear
• Potentiometer standard 6mm
• Mechanical rotation angle 200°
• Torque 0,4...3,5Ncm
• Max. operating voltage 50V
• Operating temperature -25...40°C
• Mounting THT
• Terminal pitch 5x5mm

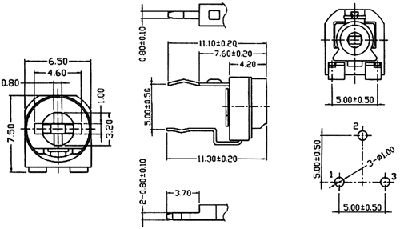

• Body dimensions 6.5x7x4.2mm
• Additional information
• Gross weight: 0.312 g
• Manufacturer part number: RKT6V-2K

Parametri

2K
100mW
THT
Vienapgriezienu

Papildu dokumentācija
