Apraksts

• Manufacturer ACP
• Potentiometer type mounting
• Potentiometer kind single turn, horizontal
• Resistance 250kΩ
• Power 100mW
• Tolerance ±20%
• Characteristics linear
• Potentiometer series CA6V
• Potentiometer standard 6mm
• Mechanical rotation angle 235 ±10°
• Torque 0,2...2Ncm
• Max. operating voltage 100V
• Operating temperature -25...70°C
• Mounting THT
• Terminal pitch 5x5mm
• Track material carbon
• Electrical rotation angle 215 ±20°

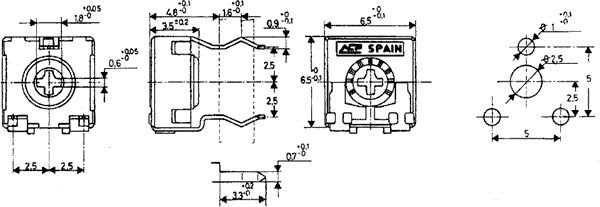

• Body dimensions 6.5 x 6.5 x 3.5mm

Parametri

250K
100mW
THT
Vienapgriezienu

Papildu dokumentācija
