Apraksts

• Specification

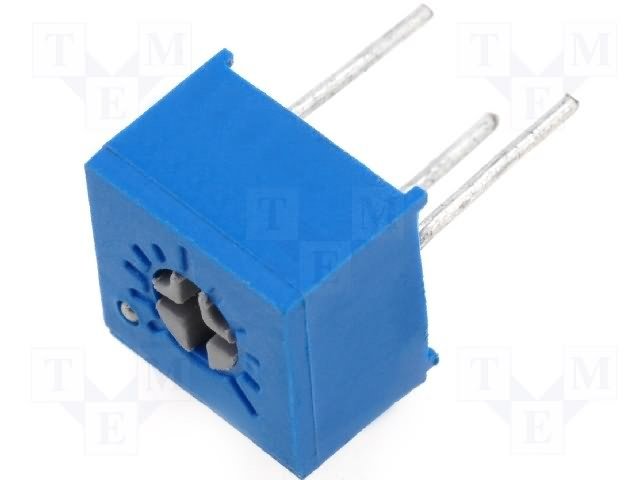

• Potentiometer type mounting, single turn, horizontal
• Resistance 2kΩ;
• Power 250mW
• Tolerance ±10%
• Characteristics linear
• Potentiometer standard 1/4"
• Mechanical rotation angle 260 ±10°
• Operating temperature -55...125°C
• Mounting THT
• Terminal pitch 2.54x2.54mm
• Track material cermet

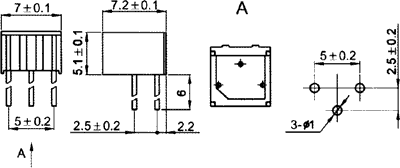

• Body dimensions 7.2 x 7 x 5mm
• Temperature coefficient 100ppm/°C
• Potentiometer features precise
• Mechanical durability 200cycles
• Similar models from other manufacturers 3362

Parametri

2K
250mW
THT
Vienapgriezienu

Papildu dokumentācija
