Apraksts

• Manufacturer SR PASSIVES
• Type of potentiometer mounting
• Kind of potentiometer multiturn
• Resistance  20kΩ
• Power 750mW
• Tolerance ±10%
• Characteristics linear
• Track material cermet
• Mounting THT
• Operating temperature -55...125°C
• Potentiometer standard 19mm
• Temperature coefficient 100ppm/°C
• Similar models from other manufacturers 3006,  43P,  89,  T18
• Mechanical durability 200 cycles
• Number of mechanical turns 22

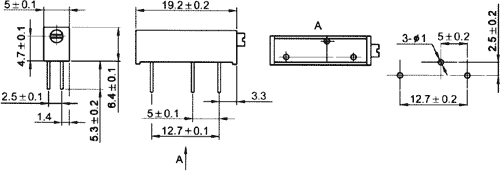

• Dimensions see
• Additional information
• Gross weight: 1.026 g
• Manufacturer part number: T196P-50K

Parametri

50K
750mW
THT
Daudzapgriezienu

Papildu dokumentācija
