Apraksts

• Specification

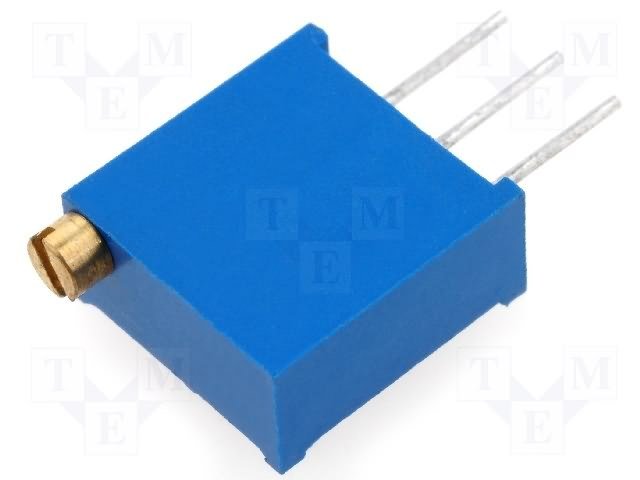

• Potentiometer type mounting, multiturn
• Resistance 5kΩ;
• Power 500mW
• Mounting THT
• Tolerance ±10%
• Characteristics linear
• Track material cermet
• Operating temperature -55...125°C
• Potentiometer standard 3/8"
• Temperature coefficient 100ppm/°C

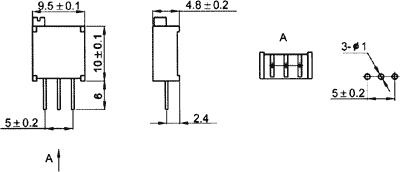

• Body dimensions 10 x 9.5 x 4.8mm
• Terminal pitch 2.5mm
• Number of mechanical turns 28
• Similar models from other manufacturers 3296W, 64W, 67W, T93YA
• Control vertical
• Mechanical durability 200cycles

Parametri

5K
500mW
THT
Daudzapgriezienu

Papildu dokumentācija
