• Specification

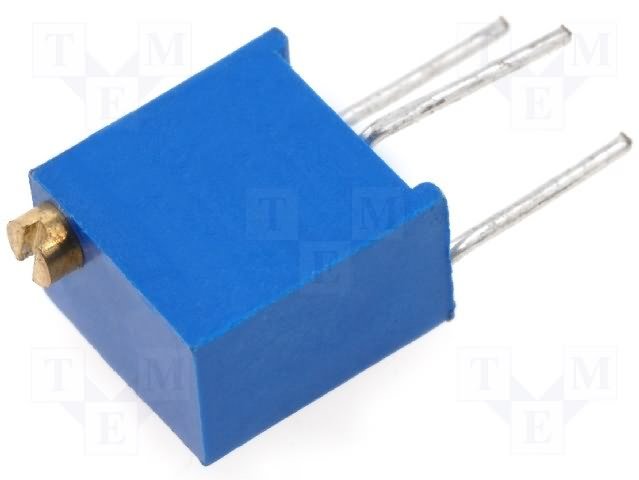

• Potentiometer type mounting, multiturn
• Resistance 5kΩ;
• Power 250mW
• Tolerance ±10%
• Characteristics linear

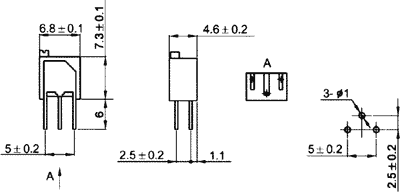

• Body dimensions 6.8 x 6.8 x 4.6mm
• Potentiometer standard 1/4"
• Mounting THT
• Operating temperature -55...125°C
• Temperature coefficient 100ppm/°C
• Number of electrical turns 12
• Track material cermet
• Mechanical durability 200cycles
• Similar models from other manufacturers 3266
