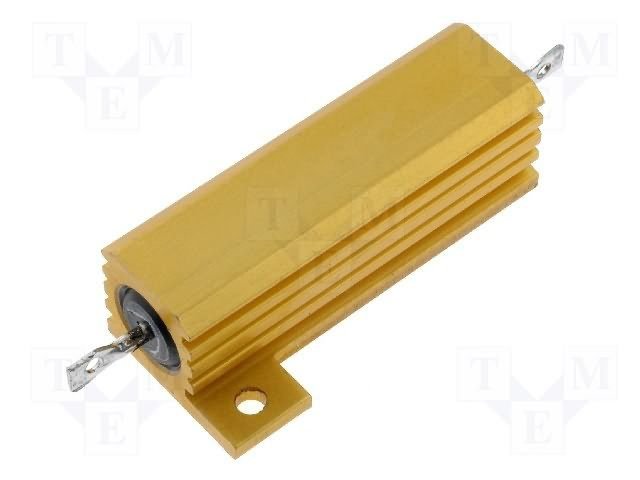

5R6 50W, ±5%, Rezistors ar radiatoru, 49.1x29.7x14.8mm
5R6 50W, ±5%, Rezistors ar radiatoru, 49.1x29.7x14.8mm

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

5R6 50W, ±5%, Rezistors ar radiatoru, 49.1x29.7x14.8mm

Cena: 4.77 €
00024345
HS50-5R6J
7
  • Apraksts

    • Manufacturer ARCOL
    • Type of resistor wire-wound
    • Kind of resistor with heatsink
    • Mounting screw
    • Resistance  5.6Ω
    • Power 50W
    • Tolerance ±5%
    • Max. operating voltage 1250V
    • Body dimensions 49.1x29.7x14.8mm
    • Resistor features needs additional heatsink
    • Temperature coefficient 100ppm/°C
    • Leads for soldering
    • Mounting holes pitch 39.7x21.4mm
    • Power without heatsink 14W
    • Additional information
    • Gross weight: 23.9 g
    • Manufacturer part number: HS50-5R6J

    Parametri

    5R6
    50W
