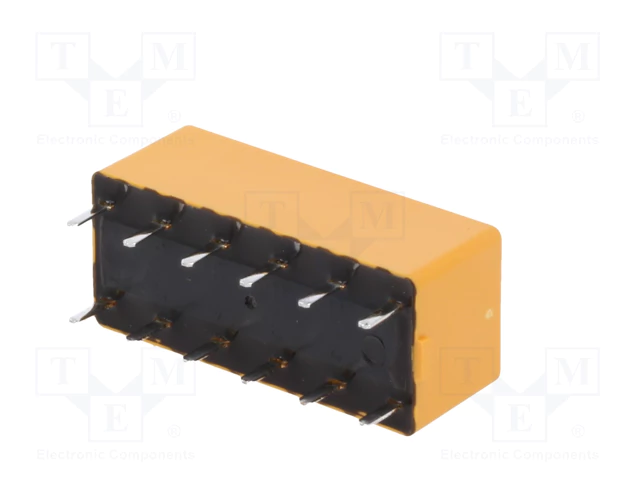

Apraksts

• Manufacturer PANASONIC
• Type of relay electromagnetic
• Contacts configuration (SPST-NO + SPST-NC) x2
• Contacts configuration
• Rated coil voltage 5V DC
• Contact current max. 4A
• AC contacts rating @R(at resistive load) 4A / 250V AC
• at resistive load
• DC contacts rating @R(at resistive load) 3A / 30V DC
• at resistive load
• Relay series S
• Switched voltage max. 48V DC, max. 250V AC
• Relay variant miniature

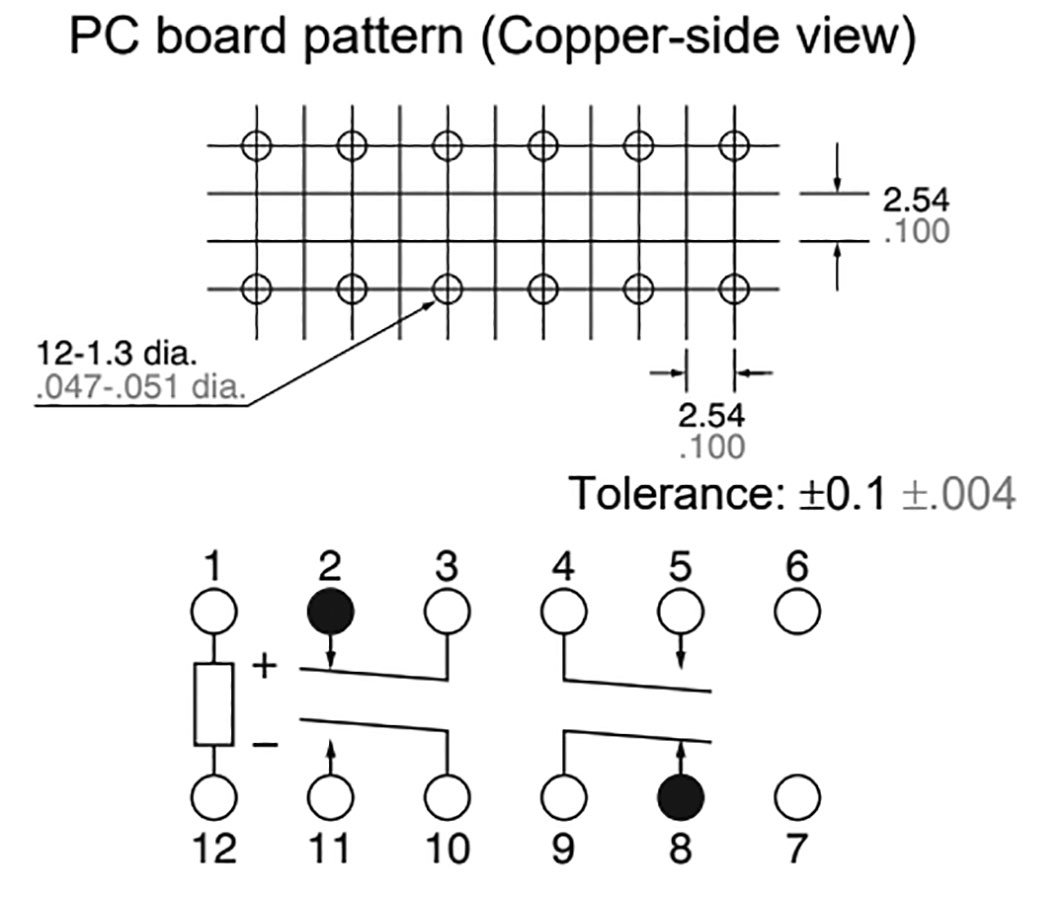

• Mounting PCB, socket
• Coil resistance 130Ω
• Coil voltage min. 3.5V DC

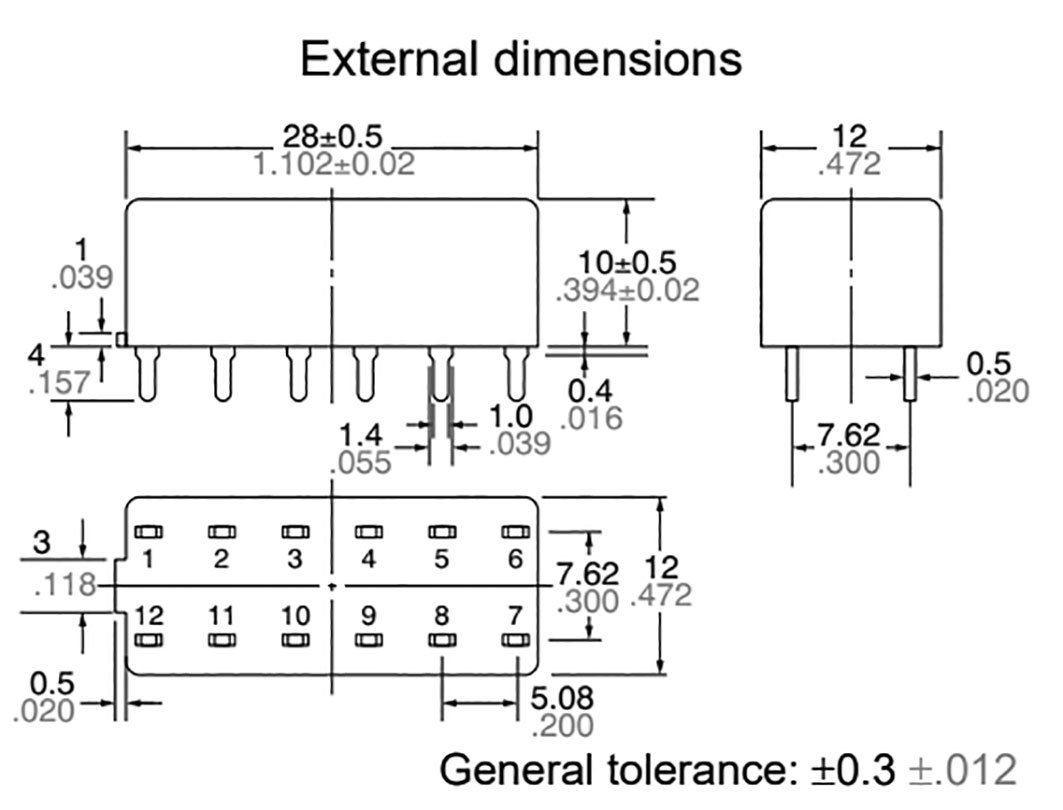

• Body dimensions 28x12x10mm
• Coil power consumption 192mW
• Contact material Ag/Au
• Coil current 38.5mA
• Contact plating gold-plated

Parametri

PANASONIC
DC5V
SPST-NO x2 + SPST-NC x2
4x4A/250VAC
4x3A/30VDC
uz saslēgšanu/atslēgšanu
monostabilais
4
