Apraksts

• Manufacturer OMRON
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 5V DC
• AC contacts rating @R
• (at resistance load) 5A / 250VAC
• DC contacts rating @R
• (at resistance load) 3A / 30VDC
• Contact current max. 5A
• Switched voltage max 250V AC, max 30V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 125Ω
• Operate time 10ms

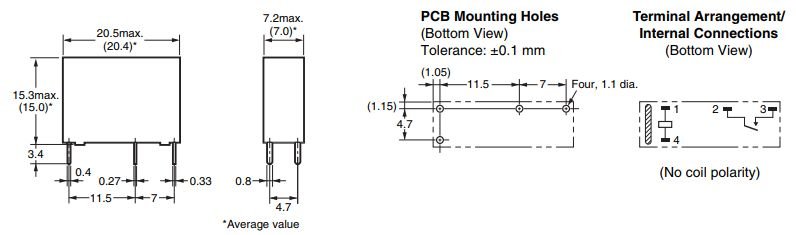

• Body dimensions 20.5 x 7.2 x 15.3mm
• Release time 10ms
• Coil power consumption 200mW
• Operating temperature -40...70°C
• Relay series G5NB
• Contact resistance 100mΩ
• Terminal pitch 7mm
• Coil current 40mA
• Enclosure description standard seal Additional information
• Gross weight: 3.8 g

Parametri

OMRON
DC5V
SPST-NO
5A/250VAC
3A/30VDC
uz saslēgšanu
monostabilais
1

Papildu dokumentācija
