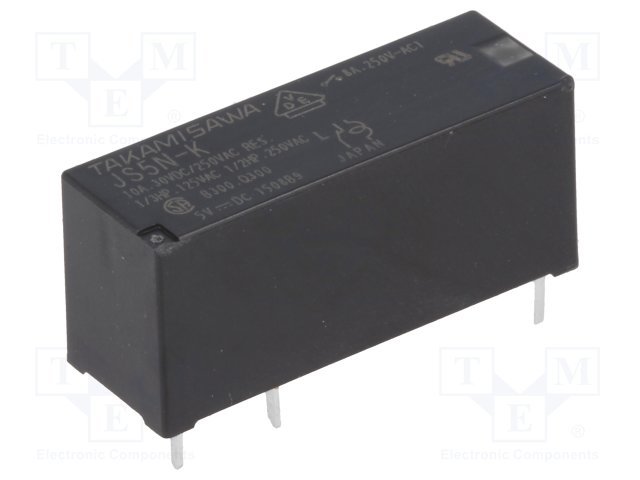

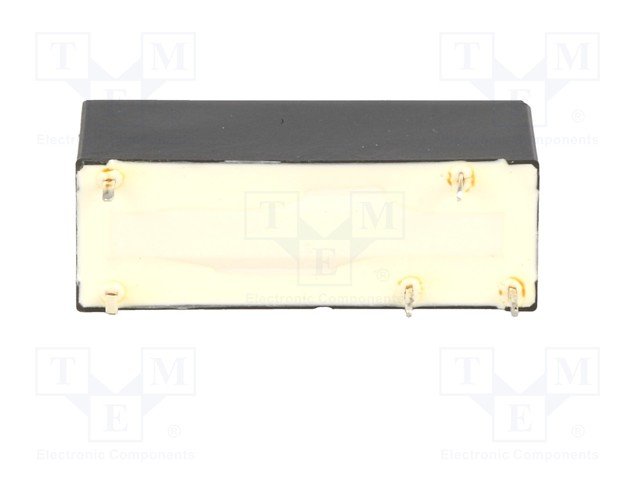

Apraksts

• Manufacturer FUJITSU-TAKAMISAWA
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 5V DC
• AC contacts rating
• (at resistance load) 8 A / 250 VAC
• DC contacts rating
• (at resistance load) 8 A / 24 VDC
• Contact current max. 8A
• Switched voltage max 400V AC, max 150V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 112Ω
• Coil voltage min. 3.5V DC
• Coil voltage max. 11.8V DC
• Operate time 10ms

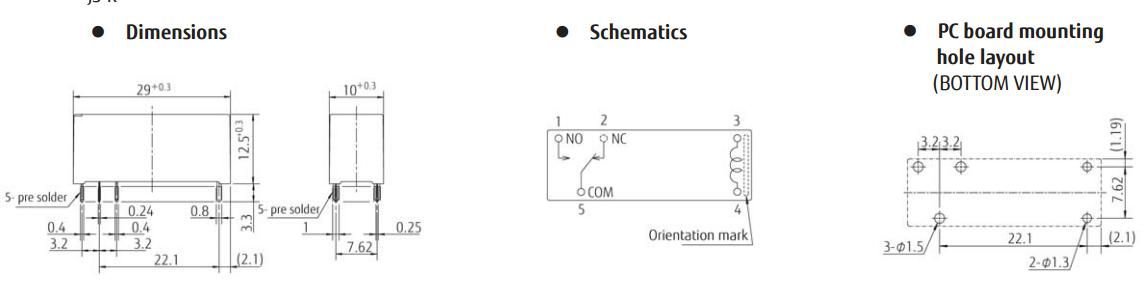

• Body dimensions 29 x 10 x 12.5mm
• Release time 5ms
• Coil power consumption 400mW
• Operating temperature -40...85°C
• Relay series JS
• Contact resistance 100mΩ
• Contact material AgSnO2
• Terminal pitch 3.2mm
• Contact plating gold plated

Parametri

FUJITSU
DC5V
SPDT
8A/24VDC
uz pārslēgšanu
monostabilais
1
8A/250VAC
