Apraksts

• Manufacturer RELPOL
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 5V DC
• AC contacts rating
• (at resistance load) 6 A / 250 VAC
• DC contacts rating
• (at resistance load) 6 A / 24 VDC
• Contact current max. 6A
• Switched voltage max 24V DC, max 400V AC
• Relay variant interface

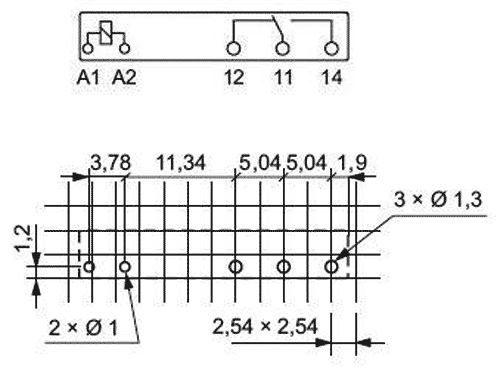

• Mounting PCB, vertical, socket
• Coil resistance 147Ω
• Coil voltage min. 3.75V DC
• Coil voltage max. 7.5V DC
• Operate time 8ms
• Body dimensions 28 x 5 x 15mm
• Release time 4ms
• Coil power consumption 170mW
• Sealing IP64
• Operating temperature -40...85°C
• Relay series RM699B
• Contact resistance 100mΩ
• Terminal pitch 5mm

Parametri

RELPOL
DC5V
SPDT
6A/250VAC
6A/24VDC
uz pārslēgšanu
monostabilais
1

Papildu dokumentācija
