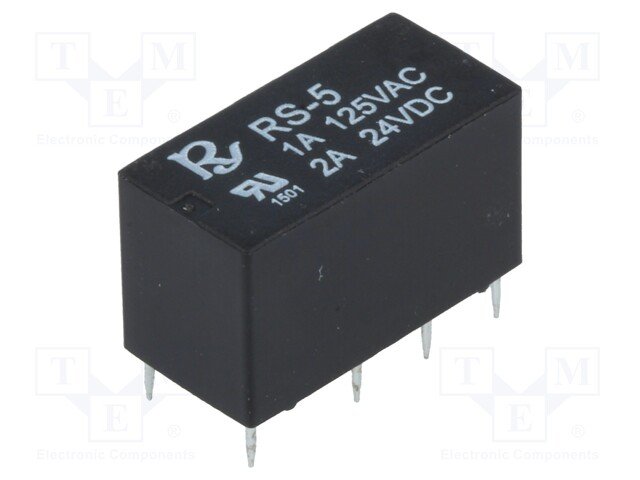

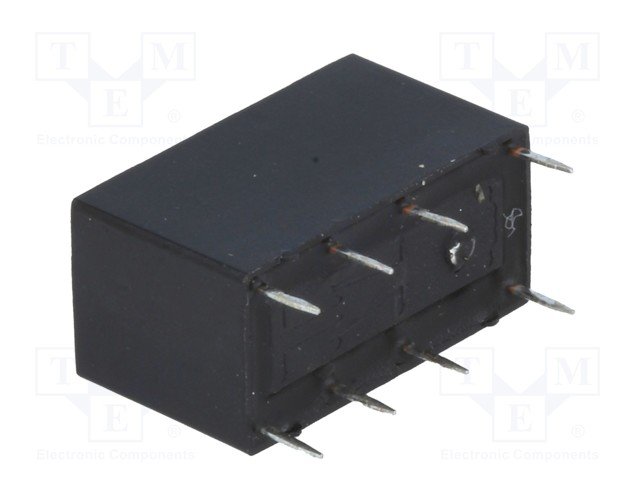

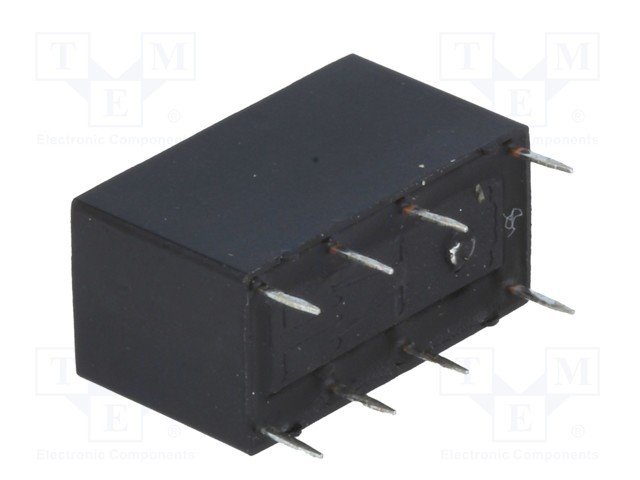

Apraksts

• Manufacturer Recoy/RAYEX ELECTRONICS
• Type of relay electromagnetic
• Contacts configuration  DPDT
• Rated coil voltage 5V DC
• AC contacts rating @R  1A / 120V AC
• DC contacts rating @R  2A / 30V DC
• Contact current max. 2A
• Switched voltage max. 30V DC,  max. 120V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 167Ω
• Operate time 6ms

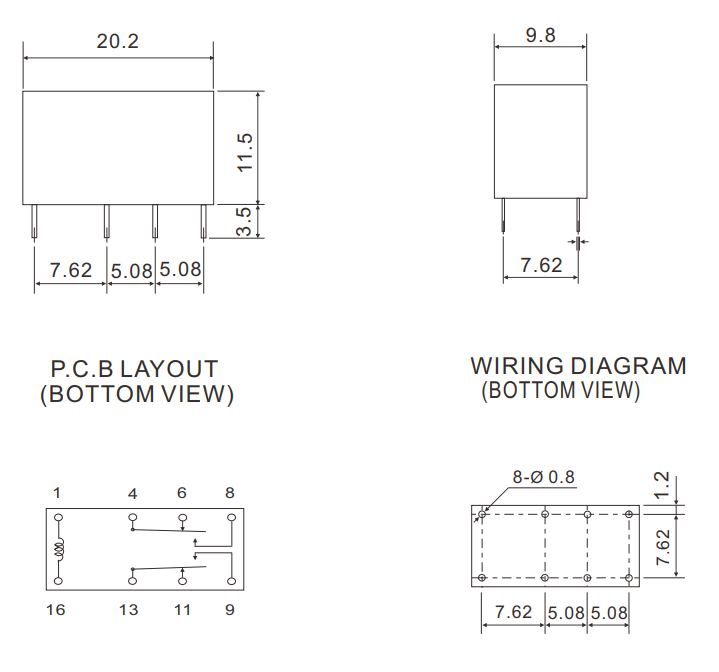

• Body dimensions 20.2x9.8x11.5mm
• Release time 3ms
• Coil power consumption 150mW
• Operating temperature -30...70°C
• Relay series RS
• Contact resistance 100mΩ
• Contact material AgCdO
• Terminal pitch 5.08mm
• Coil current 29.9mA
• Additional information
• Gross weight: 4.967 g
• Manufacturer part number: RS-5

Parametri

RAYEX ELECTRONICS
DC5V
DPDT
2x1A/120VAC
2A/30VDC
uz pārslēgšanu
monostabilais
2

Papildu dokumentācija
