Apraksts

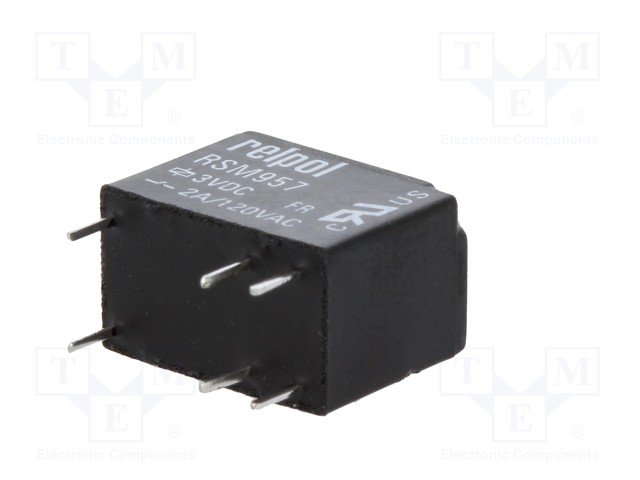

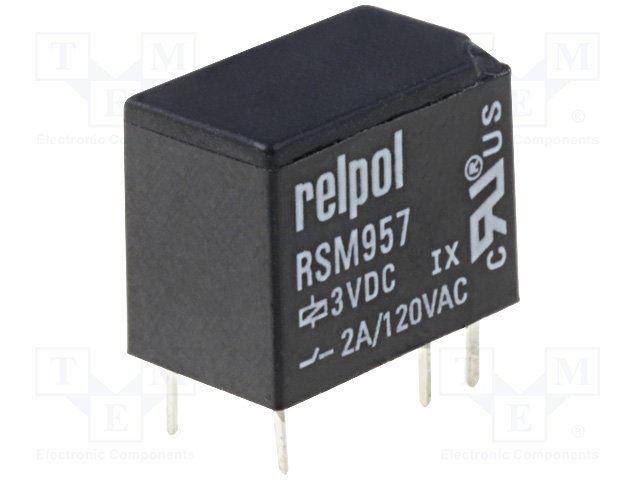

• Manufacturer RELPOL
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 3V DC
• AC contacts rating
• (at resistance load) 2 A / 120 VAC
• DC contacts rating
• (at resistance load) 2 A / 24 VDC
• Contact current max. 2A
• Switched voltage max 125V AC, max 24V DC
• Relay variant subminiature
• Mounting PCB
• Coil resistance 60Ω
• Coil voltage min. 2.4V DC
• Coil voltage max. 3.9V DC
• Operate time 5ms

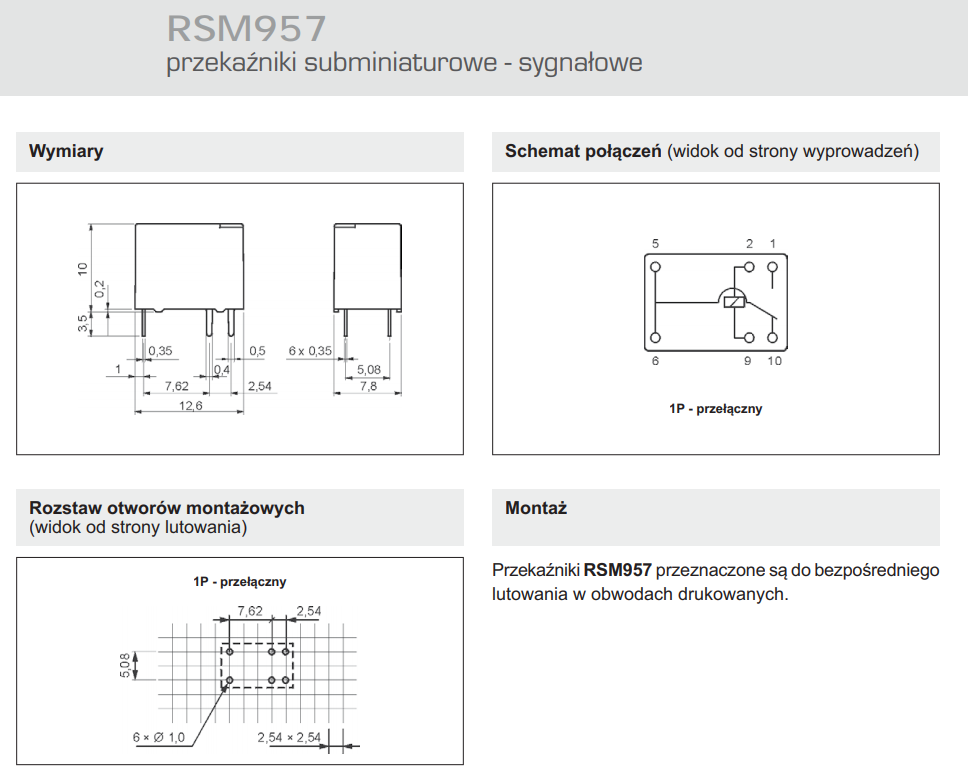

• Body dimensions 12.6 x 10 x 7.8mm
• Release time 5ms
• Coil power consumption 150W
• Sealing IP64
• Operating temperature -30...70°C
• Relay series RSM957
• Contact resistance 100mΩ
• Contact material Ag/Au 0,2 μm
• Contacts pitch 2.54mm

Parametri

RELPOL
DC3V
SPDT
2A/120VAC
2A/24VDC
uz pārslēgšanu
monostabilais
1
