Apraksts

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration  DPDT
• Rated coil voltage 3V DC
• AC contacts rating @R  8A / 250V AC
• DC contacts rating @R  8A / 24V DC
• Contact current max. 8A
• Switched voltage max. 250V DC,  max. 440V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 22Ω
• Coil voltage min. 2.1V DC
• Coil voltage max. 7.6V DC
• Operate time 7ms

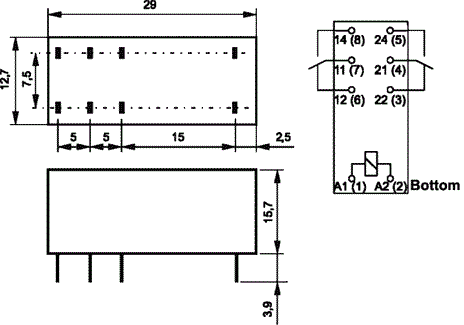

• Body dimensions 29x12.7x15.7mm
• Release time 3ms
• Coil power consumption 480mW
• IP rating IP67
• Mechanical durability 30000000 cycles
• Operating temperature -40...85°C
• Weight 14g
• Relay series RM84
• Contact resistance 100mΩ
• Contact material AgNi/Au 5μm
• Terminal pitch 5mm
• Height 15.7mm
• Related items GD50,  GZ80,  GZM80,  GZM80-BK,  GZT80,  PW80
• Number of pins 8
• Body colour white
• Additional information
• Gross weight: 12.5 g
• Manufacturer part number: RM84-2312-35-1003

Parametri

RELPOL
DC3V
DPDT
2x8A/250VAC
2x8A/24VDC
uz pārslēgšanu
monostabilais
2

Papildu dokumentācija
