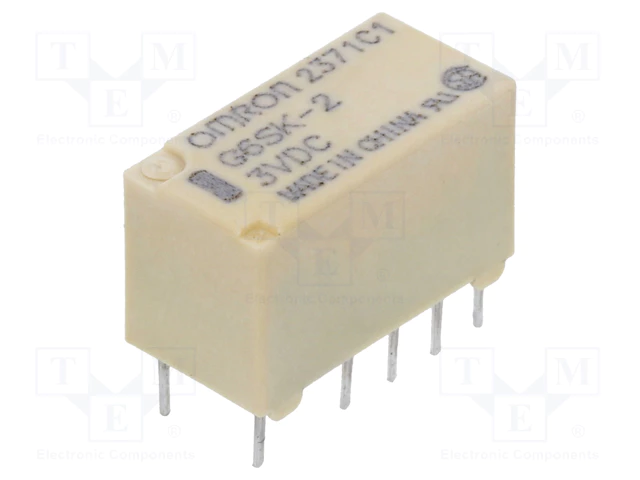

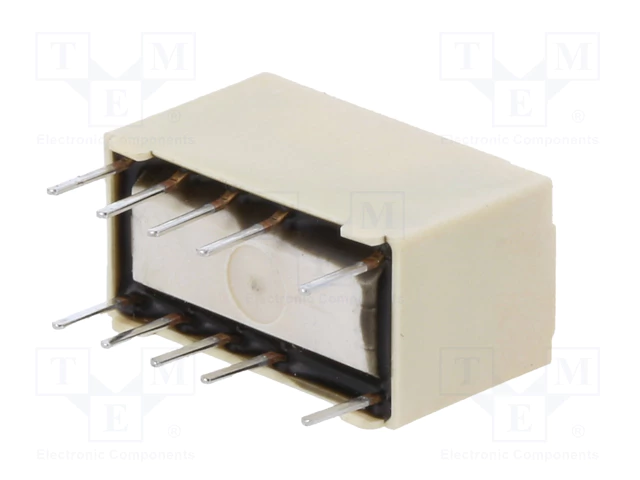

Apraksts

• Manufacturer OMRON OCB
• Type of relay electromagnetic
• Contacts configuration DPDT
• Contacts configuration
• Rated coil voltage 3V DC
• Contact current max. 2A
• AC contacts rating @R(at resistive load) 0.5A / 125V AC
• at resistive load
• DC contacts rating @R(at resistive load) 2A / 30V DC
• at resistive load
• Switched voltage max. 220V DC, max. 250V AC
• Relay variant bistable, subminiature
• Mounting PCB
• Coil resistance 45Ω
• Operate time 4ms

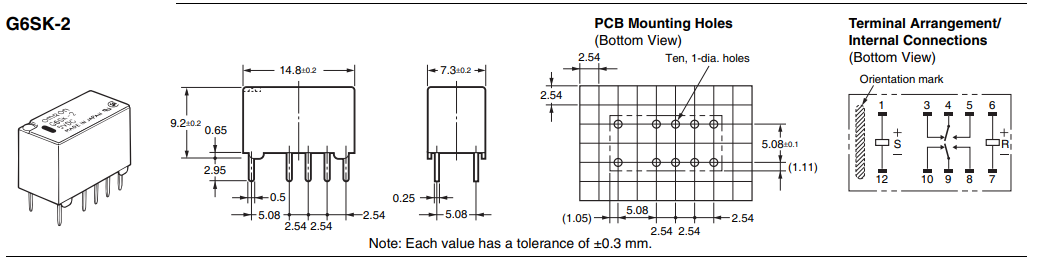

• Body dimensions 14.8x7.3x9.2mm
• Release time 4ms
• Coil power consumption 200mW
• Operating temperature -40...85°C
• Relay series G6S
• Contact resistance 75mΩ
• Terminal pitch 2.54mm
• Coil current 66.6mA
• Gross weight2.16 g

Parametri

OMRON
DC3V
DPDT
2x0.5A/125VAC
2x2A/30VDC
uz pārslēgšanu
bistabilais
2
