Apraksts

• Manufacturer TE Connectivity
• Relay type electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 24V DC
• AC contacts rating
• (at resistance load) 8 A / 240 VAC
• DC contacts rating
• (at resistance load) 8 A / 30 VDC
• Contact current max. 8A
• Switched voltage max 400V AC, max 300V DC
• Relay variant miniature
• Mounting THT
• Coil resistance 2.27kΩ
• Operate time 10ms
• Body dimensions 28.6 x 10 x 15mm
• Release time 5ms
• Coil power consumption 254mW
• Operating temperature -40...85°C
• Relay series V23061
• Contact material AgSnO2

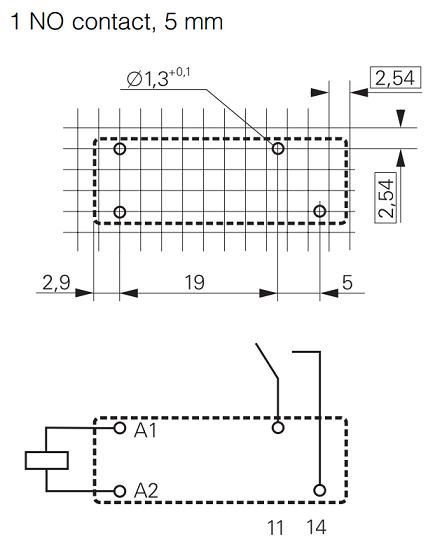

• Terminal pitch 2.54mm

Parametri

TE Connectivity
DC24V
SPST-NO
8A/250VAC
8A/30VDC
uz saslēgšanu
monostabilais
1
