Apraksts

• Manufacturer TE Connectivity
• Type of relay electromagnetic
• Contacts configuration  SPST-NO
• Rated coil voltage 24V DC
• AC contacts rating @R  3A / 250V AC
• (at resistive load)
• DC contacts rating @R  5A / 30V DC
• (at resistive load)
• Contact current max. 5A
• Switched voltage max. 125V DC,  max. 277V AC
• Relay variant interface
• Mounting PCB
• Coil resistance 4.8kΩ
• Body dimensions 20x12.5x5mm
• Coil power consumption 120mW
• Operating temperature -40...85°C
• Weight 3g
• Relay series PCN
• Contact material AgNi
• Terminal pitch 7.62mm
• Additional information
• Gross weight: 2.64 g
• Manufacturer part number: 7-1461491-6

Parametri

TE Connectivity
DC24V
SPST-NO
5A/250VAC
5A/30VDC
uz saslēgšanu
monostabilais
1

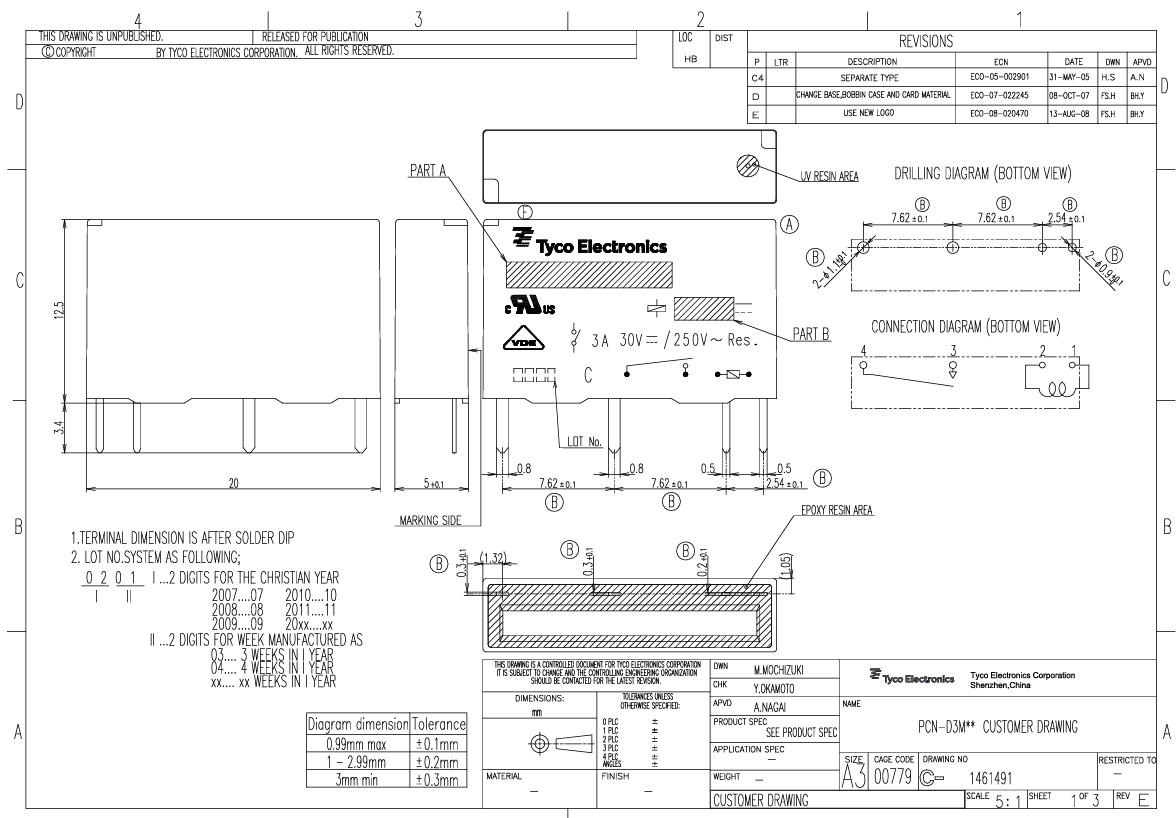

Papildu dokumentācija

6231e8ecbdb7b_10591a
