Apraksts

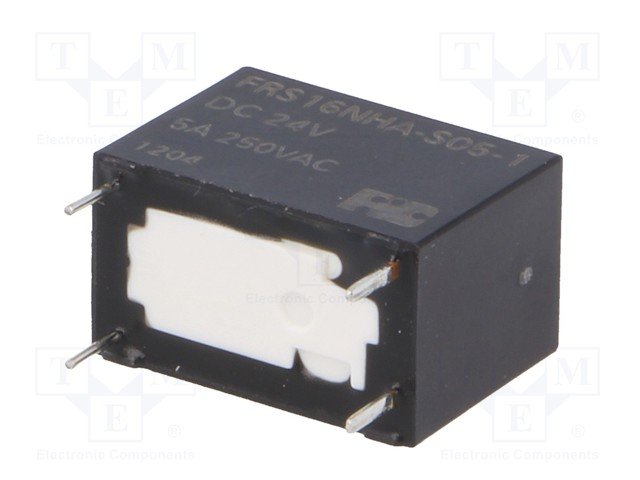

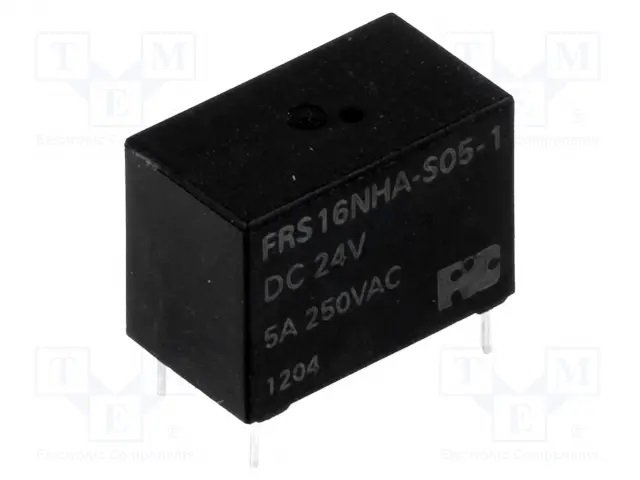

• Manufacturer FORWARD INDUSTRIAL CO.
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 24V DC
• AC contacts rating @R
• (at resistive load) 5A / 125V AC
• DC contacts rating @R
• (at resistive load) 5A / 30V DC
• Contact current max. 5A
• Switched voltage max. 60V DC, max. 220V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 2.8kΩ
• Coil voltage min. 18V DC

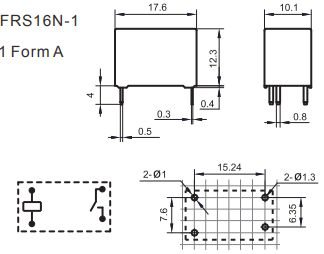

• Body dimensions 17.6x10.1x12.3mm
• Coil power consumption 200mW
• Operating temperature -40...85°C
• Relay series FRS1
• Contact resistance 50mΩ
• Contact material silver alloy
• Terminal pitch 2.5mm

Parametri

FORWARD INDUSTRIAL CO.
DC24V
SPST-NO
5A/250VAC
5A/30VDC
uz saslēgšanu
monostabilais
1
