Apraksts

• Manufacturer FUJITSU
• Type of relay electromagnetic
• Contacts configuration  SPST-NO
• Rated coil voltage 24V DC
• AC contacts rating @R  5A / 250V AC
• DC contacts rating @R  5A / 30V DC
• Contact current max. 5A
• Switched voltage max. 30V DC,  max. 277V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 2.88kΩ
• Operating temperature -40...70°C
• Relay series FTR-F3
• Contact material AgNi
• Terminal pitch 7mm

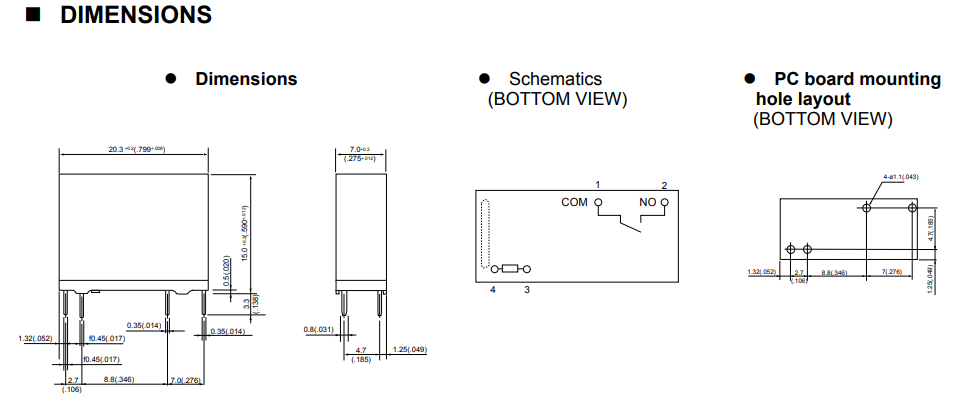

• Dimensions see
• Output configuration see
• Additional information
• Gross weight: 4.12 g
• Manufacturer part number: FTR-F3AA024E-HA

Parametri

FUJITSU
DC24V
SPST-NO
5A/250VAC
5A/30VDC
uz saslēgšanu
monostabilais
1

Papildu dokumentācija
