Apraksts

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Rated coil voltage 24V DC
• Contact current max. 16A
• AC contacts rating @R(at resistive load) 16A / 250V AC
• DC contacts rating @R(at resistive load) 16A / 24V DC
• Manufacturer series RM85
• Switched voltage max. 250V DC, max. 440V AC
• Relay variant inrush, miniature
• Mounting PCB
• Coil resistance 1.44kΩ
• Coil voltage min. 16.8V DC
• Coil voltage max. 61.2V DC
• Operate time 8ms

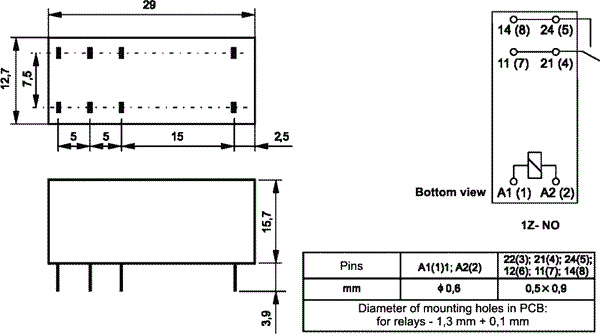

• Body dimensions 29x12.7x15.7mm
• Release time 3ms
• Coil power consumption 480mW
• IP rating IP40
• Contact resistance 100mΩ
• Contact material AgSnO2
• Terminal pitch 5mm
• Related items GD50, GZ80, GZM80, GZM80-BK, GZT80, PW80
• OEM number 855082
• Current rating 16A
• Max surge current 80A
• Body colour white
• Operating temperature -40...85°C
• Gross weight13.14 g

Parametri

RELPOL
DC24V
SPST-NO
16A/250VAC
16A/24VDC
uz saslēgšanu
monostabilais
1
