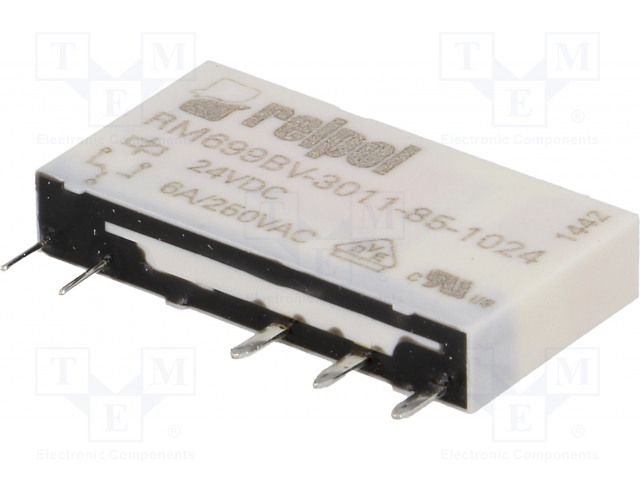

Apraksts

• Specification
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 24V DC
• AC contacts rating
• (at resistance load) 6 A / 250 VAC
• DC contacts rating
• (at resistance load) 6 A / 30 VDC
• Contact current max. 6A
• Switched voltage max 440V AC, max 300V DC
• Relay variant interface
• Mounting PCB, socket
• Coil resistance 3.39kΩ;
• Operate time 5ms

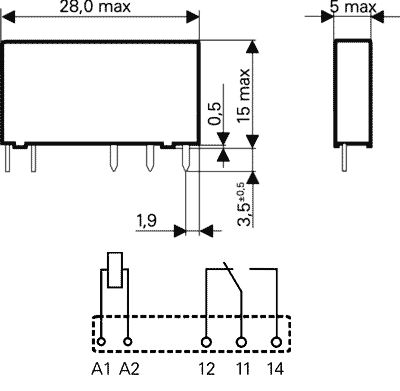

• Body dimensions 28 x 5 x 15mm
• Release time 2.5ms
• Coil power consumption 170mW
• Sealing IP67
• Mechanical durability 100000000cycles
• Operating temperature -40...85°C
• Weight 6g
• Relay series SNR
• Contact material AgSnO2
• Contacts pitch 5mm
• Coil current 7.1mA
• Input sensitivity 170mV

Parametri

RELPOL
DC24V
SPDT
6A/250VAC
6A/30VDC
uz pārslēgšanu
monostabilais
1

Papildu dokumentācija
