Apraksts

• Manufacturer Recoy/RAYEX ELECTRONICS
• Type of relay electromagnetic
• Contacts configuration  SPDT
• Rated coil voltage 24V DC
• AC contacts rating @R  3A / 120V AC
• DC contacts rating @R  3A / 24V DC
• Contact current max. 3A
• Switched voltage max. 24V DC,  max. 120V AC
• Relay variant subminiature
• Mounting THT
• Coil resistance 2.88kΩ
• Operate time 6ms
• Body dimensions 15.5x10.5x11.5mm
• Release time 3ms
• Operating temperature -25...40°C
• Relay series LU
• Contact resistance 100mΩ
• Contact material AgNi
• Terminal pitch 2.54mm
• Coil current 8.3mA

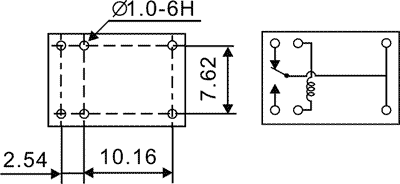

• Output configuration see

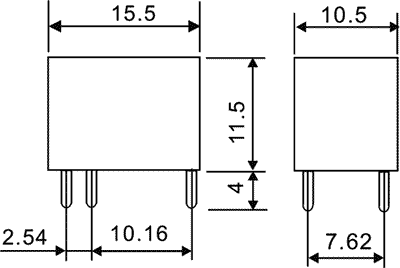

• Dimensions see
• Additional information
• Gross weight: 3.545 g

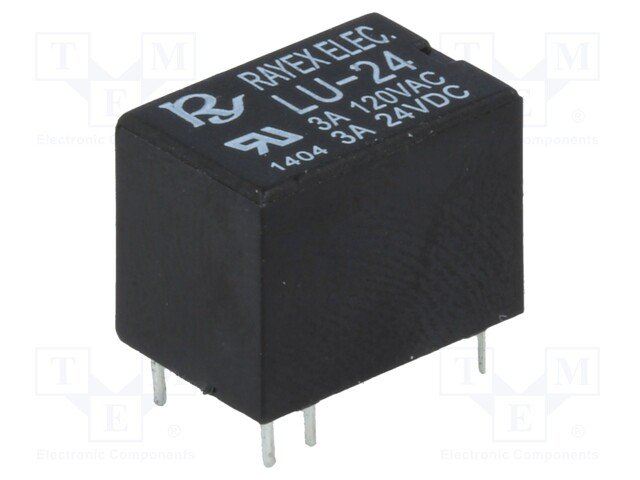

• Manufacturer part number: LU-24

Parametri

RAYEX ELECTRONICS
DC24V
SPDT
3A/120VAC
3A/24VDC
uz pārslēgšanu
monostabilais
1
