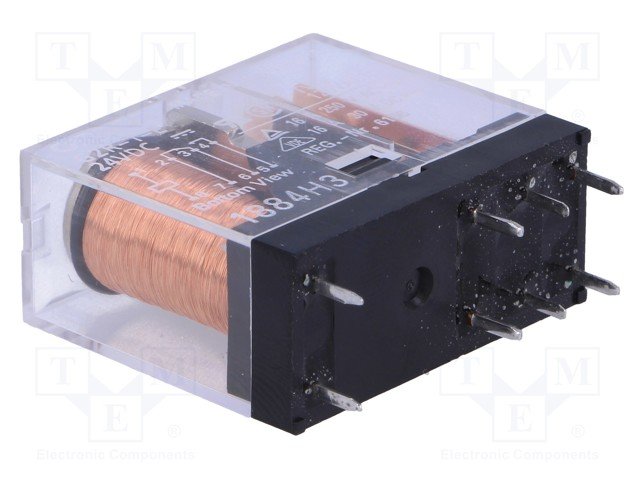

• Manufacturer OMRON
• Type of relay electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 24V DC
• AC contacts rating @R
• (at resistance load) 16 A / 250 VAC
• DC contacts rating @R
• (at resistance load) 16 A / 30 VDC
• Contact current max. 16A
• Switched voltage max 125V DC, max 380V AC
• Relay variant miniature
• Mounting PCB
• Coil voltage min. 19.2V DC
• Operate time 15ms

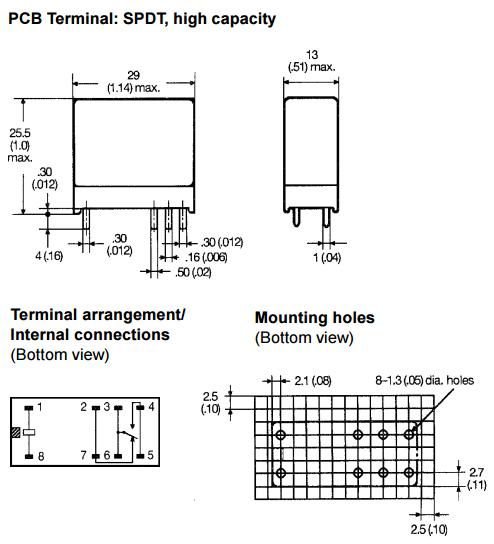

• Body dimensions 29 x 13 x 25.5mm
• Release time 5ms
• Mechanical durability 20000000cycles
• Operating temperature -40...70°C
• Relay series G2R
• Contact resistance 30mΩ
• Terminal pitch 5mm
• Coil current 21.8mA
• Enclosure description standard seal

Parametri

OMRON
DC24V
SPDT
16A/250VAC
16A/30VDC
uz pārslēgšanu
monostabilais
1
