Apraksts

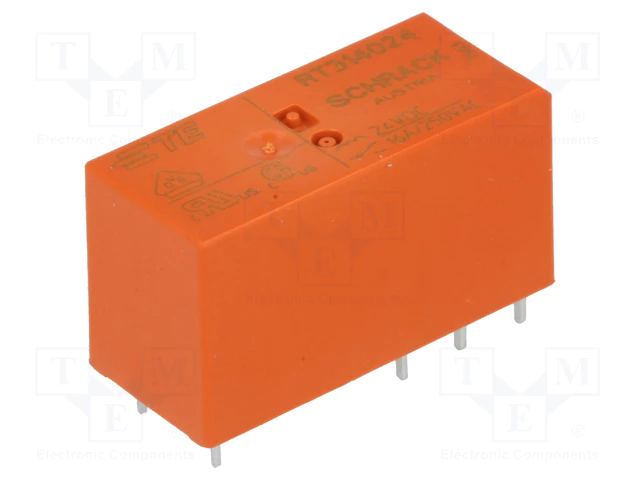

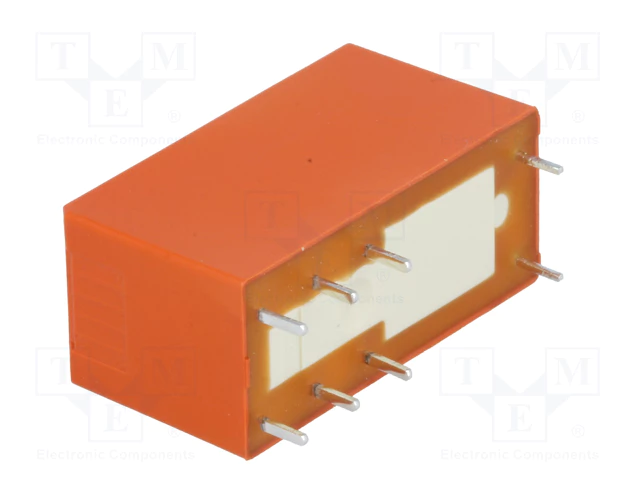

• Manufacturer TE Connectivity
• Type of relay electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 24V DC
• Contact current max. 16A
• AC contacts rating @R(at resistive load) 16A / 250V AC
• DC contacts rating @R(at resistive load) 16A / 24V DC
• Switched voltage max. 300V DC, max. 400V AC
• Relay variant miniature
• Mounting THT
• Coil resistance 1.44kΩ
• Coil voltage min. 16.8V DC

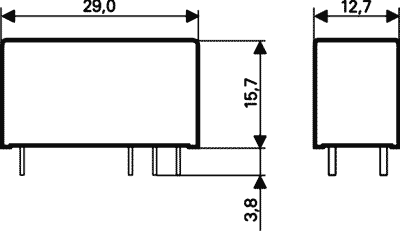

• Body dimensions 29x15.7x12.7mm
• Coil power consumption 400mW
• IP rating IP40
• Mechanical durability 30000000 cycles
• Operating temperature -40...70°C
• Relay series RT/5
• Switching capacity 3kVA
• Contact material AgNi

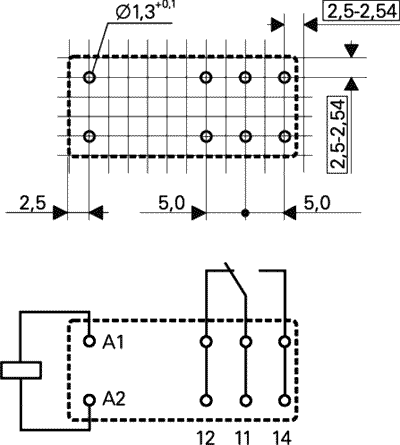

• Terminal pitch 5mm
• Height 15.7mm
• Number of pins 8
• Max surge current 25A

Parametri

TE Connectivity
DC24V
SPDT
16A/250VAC
16A/24VDC
uz pārslēgšanu
monostabilais
1
