Apraksts

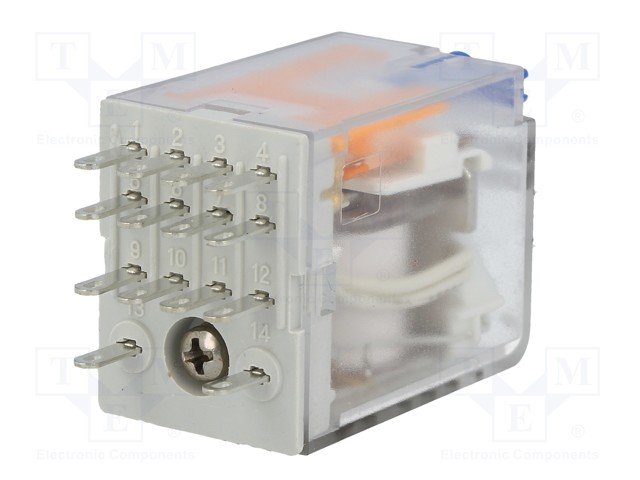

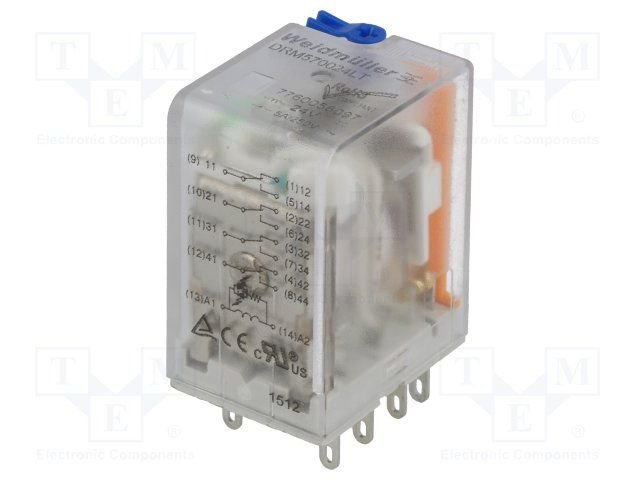

• Manufacturer WEIDMULLER
• Relay type electromagnetic
• Contacts configuration 4PDT
• Rated coil voltage 24V DC
• AC contacts rating
• (at resistance load) 5 A / 250 VAC
• DC contacts rating
• (at resistance load) 5 A / 24 VDC
• Contact current max. 5A
• Switched voltage max 250V AC, max 200V DC
• Relay variant industrial
• Mounting socket
• Relay series DRM
• Operating temperature -40...60°C
• Body dimensions 21.5 x 28 x 36mm
• Contact resistance 50mΩ
• Coil power consumption 0.9W
• Leads 2.5x0.5mm connectors
• Sealing IP20

Parametri

WEIDMULLER
DC24V
4PDT
4x5A/250VAC
4x5A/24VDC
uz pārslēgšanu
monostabilais
4

Papildu dokumentācija
