Apraksts

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration 3PDT
• Rated coil voltage 24V AC
• AC contacts rating @R
• (at resistive load) 10A / 250V AC
• DC contacts rating @R
• (at resistive load) 10A / 24V DC
• Contact current max. 20A
• Switched voltage max. 250V DC, max. 440V AC
• Relay variant industrial
• Mounting socket
• Relay series R15
• Operating temperature -40...55°C

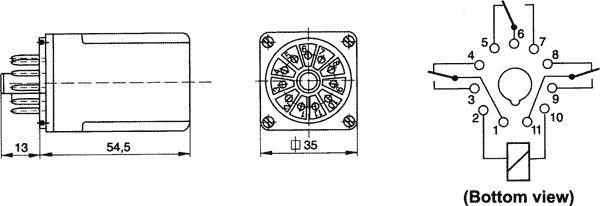

• Body dimensions 35x35x54.5mm
• Coil resistance 75Ω
• Contact resistance 100mΩ
• Coil power consumption 1.6VA
• Leads stud terminals
• Number of pins 11
• Electrical connection round socket
• Kind of connector undecal
• Related items GZP11, GZU11, PZ11
• Optional equipment:
• mechanical indicator
• test button with blocking function
• Additional information
• Gross weight: 84.9 g
• Manufacturer part number: R15-2013-23-5024-WT

Parametri

RELPOL
AC24V
3PDT
3x10A/250VAC
3x10A/24VDC
uz pārslēgšanu
monostabilais
3

Papildu dokumentācija
