Apraksts

• Manufacturer TE Connectivity
• Type of relay electromagnetic
• Contacts configuration  SPDT
• Rated coil voltage 230V AC
• AC contacts rating @R  16A / 250V AC
• DC contacts rating @R  16A / 24V DC
• Contact current max. 16A
• Switched voltage max. 300V DC,  max. 400V AC
• Relay variant miniature
• Mounting THT
• Coil resistance 32.5kΩ
• Coil voltage min. 172.5V AC
• Body dimensions 29x15.7x12.7mm
• Coil power consumption 750mVA
• IP rating IP40
• Mechanical durability 10000000 cycles
• Operating temperature -40...70°C
• Weight 14g
• Relay series RT/5
• Switching capacity 3kVA
• Contact material AgNi
• Terminal pitch 5mm
• Height 15.7mm
• Number of pins 8
• Max surge current 25A

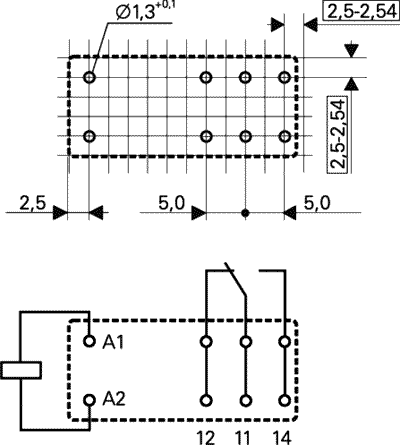

• Dimensions see
• Output configuration see
• Additional information
• Gross weight: 13.1 g
• Manufacturer part number: 0-1393240-7

Parametri

TE Connectivity
230VAC
SPDT
16A/250VAC
16A/24VDC
uz pārslēgšanu
monostabilais
1
