Apraksts

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration  SPDT
• Rated coil voltage 230V AC
• AC contacts rating @R  12A / 250V AC
• DC contacts rating @R  12A / 24V DC
• Contact current max. 12A
• Switched voltage max. 250V DC,  max. 440V AC
• Relay variant miniature
• Mounting PCB,  socket
• Coil resistance 38.5kΩ
• Coil voltage min. 184V AC
• Coil voltage max. 276V AC
• Operate time 7ms
• Body dimensions 28.5x12.7x15.7mm
• Release time 3ms
• Coil power consumption 750mVA
• IP rating IP67
• Operating temperature -40...70°C
• Relay series RM87N
• Contact resistance 100mΩ
• Terminal pitch 3.5mm
• Related items GD35,  GZM92,  GZT92
• OEM number 604695

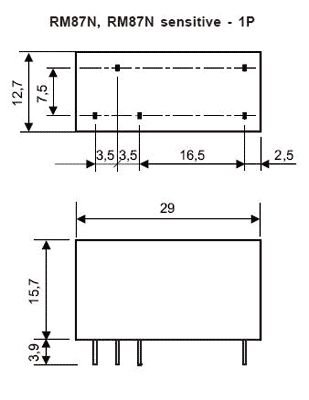

• Dimensions see
• Additional information
• Gross weight: 12.1 g
• Manufacturer part number: RM87N-2011-35-5230

Parametri

RELPOL
230VAC
SPDT
12A/250VAC
12A/24VDC
uz pārslēgšanu
monostabilais
1
