Apraksts

• Manufacturer OMRON
• Type of relay electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 240V AC
• AC contacts rating @R
• (at resistance load) 10 A / 110 VAC
• DC contacts rating @R
• (at resistance load) 10 A / 24 VDC
• Contact current max. 10A
• Switched voltage max 250V AC, max 125V DC
• Relay variant industrial
• Mounting socket
• Coil voltage min. 192V AC
• Relay series LY2
• Operating temperature -25...40°C

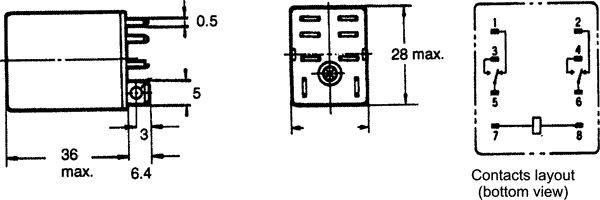

• Body dimensions 28 x 21.5 x 36mm
• Coil resistance 18.79kΩ
• Mechanical durability 50000000cycles
• Operate time 25ms
• Release time 25ms
• Switching capacity 1100VA, 240W
• Contact resistance 50mΩ
• Coil power consumption 1.2VA
• Leads 4.8x0.5mm connectors

Parametri

OMRON
230VAC
DPDT
2x10A/110VAC
uz pārslēgšanu
monostabilais
2
2x10A/24VDC
