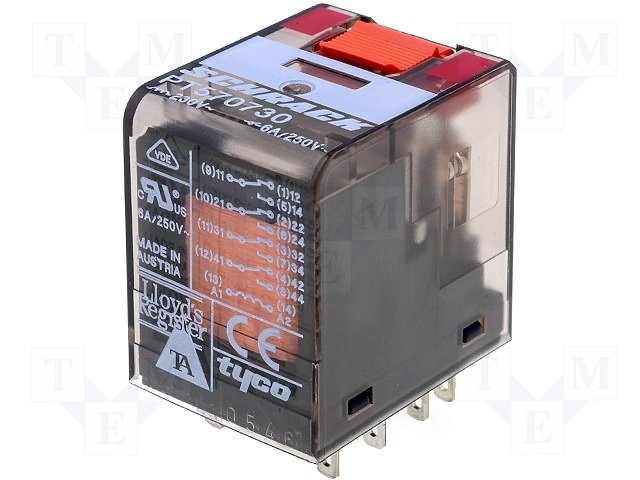

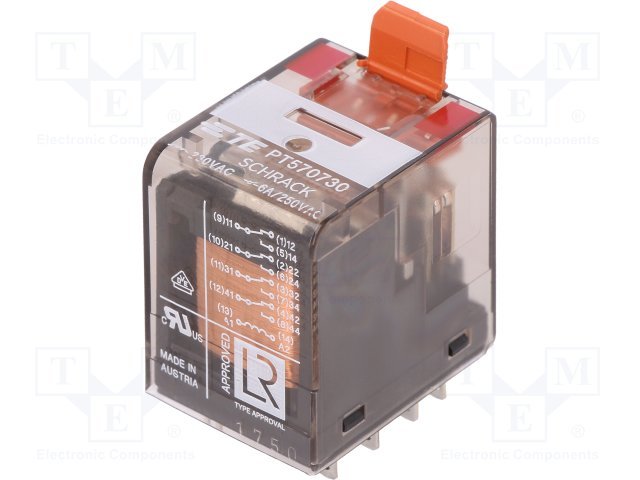

Apraksts

• Manufacturer TE Connectivity
• Type of relay electromagnetic

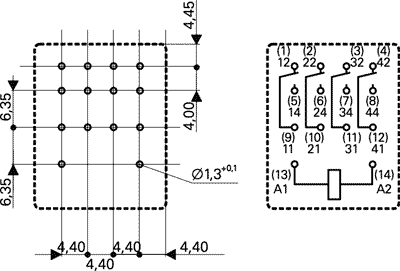

• Contacts configuration  4PDT
• Rated coil voltage 230V AC
• AC contacts rating @R  6A / 250V AC
• DC contacts rating @R  6A / 30V DC
• Contact current max. 6A
• Switched voltage max. 250V AC,  max. 300V DC
• Relay variant industrial
• Mounting socket
• Relay series PT
• Operating temperature -40...70°C
• Body dimensions 28x22.5x30mm
• Coil resistance 19465Ω
• Contact material AgNi
• Coil power consumption 1VA

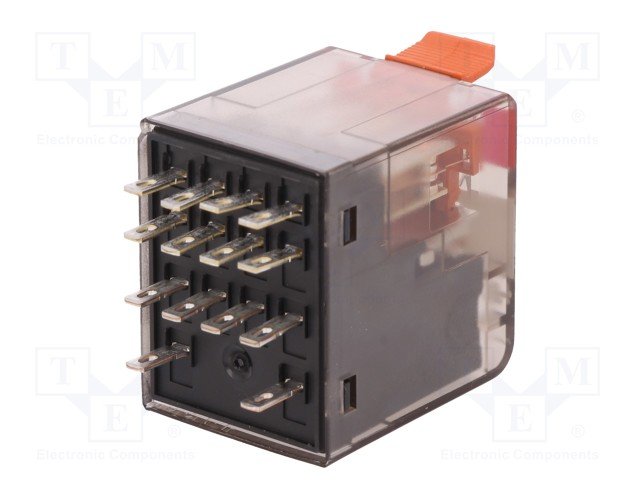

• Leads 2,8x0,5mm connectors
• Optional equipment test button with blocking function
• Related items PT78740
• Papildu informācijas
• Masa bruto: 27.39 g
• Oriģināls simbols: 9-1419111-1

Parametri

TE Connectivity
230VAC
4PDT
4x6A/240VAC
4x6A/30VDC
uz pārslēgšanu
monostabilais
4
