Apraksts

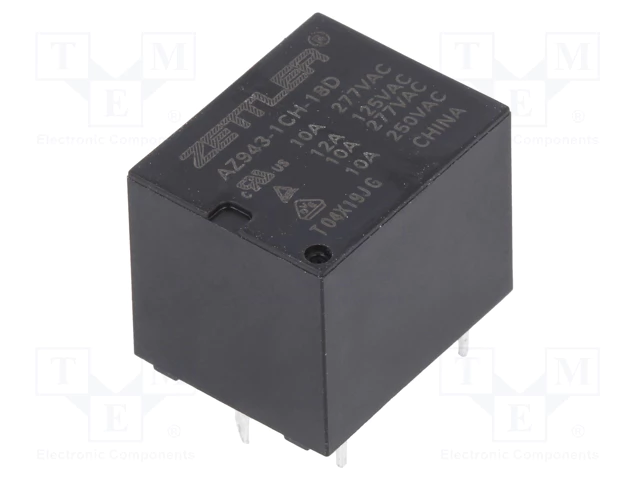

• Manufacturer ZETTLER
• Type of relay electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 18V DC
• Contact current max. 15A
• AC contacts rating @R(at resistive load) 10A / 277V AC
• DC contacts rating @R(at resistive load) 10A / 30V DC
• Switched voltage max. 30V DC, max. 300V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 900Ω
• Operate time 10ms

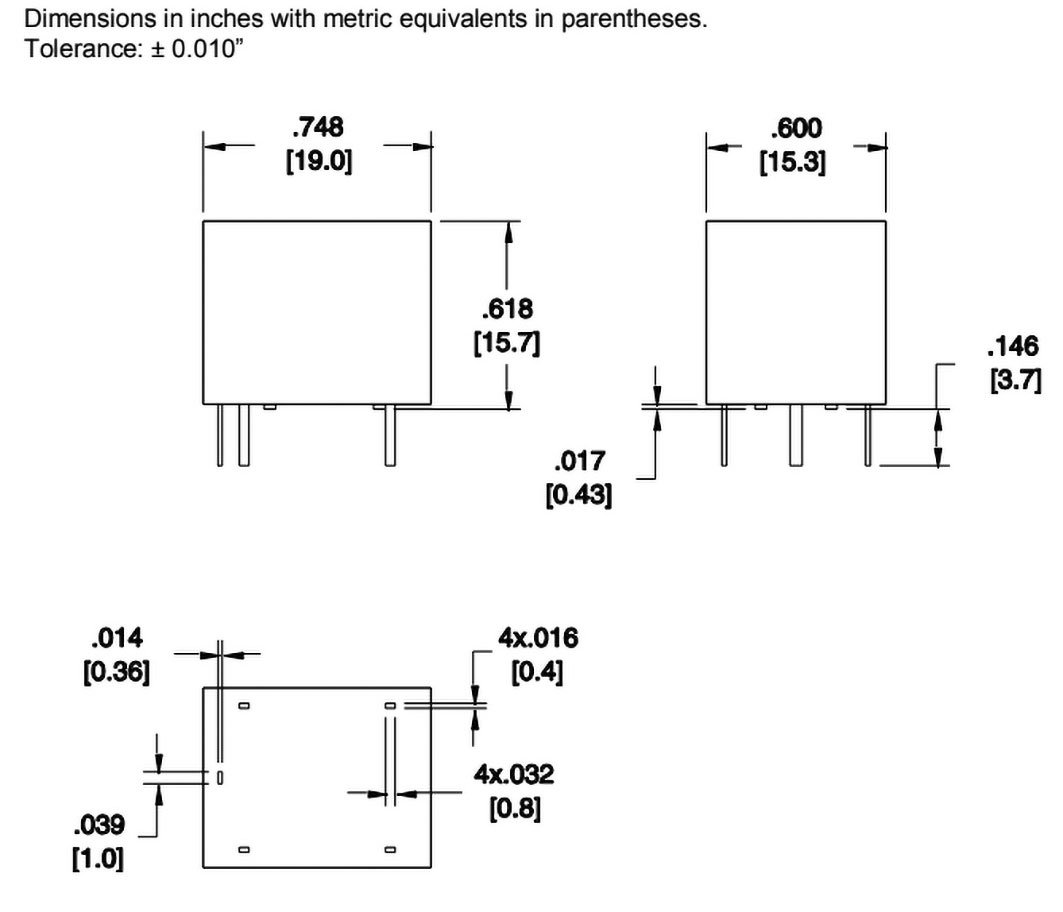

• Body dimensions 19x15.3x15.7mm
• Release time 5ms
• Coil power consumption 203mW
• IP rating IP64
• Operating temperature -40...70°C
• Relay series AZ943
• Contact resistance 100mΩ
• Contact material AgSnO2

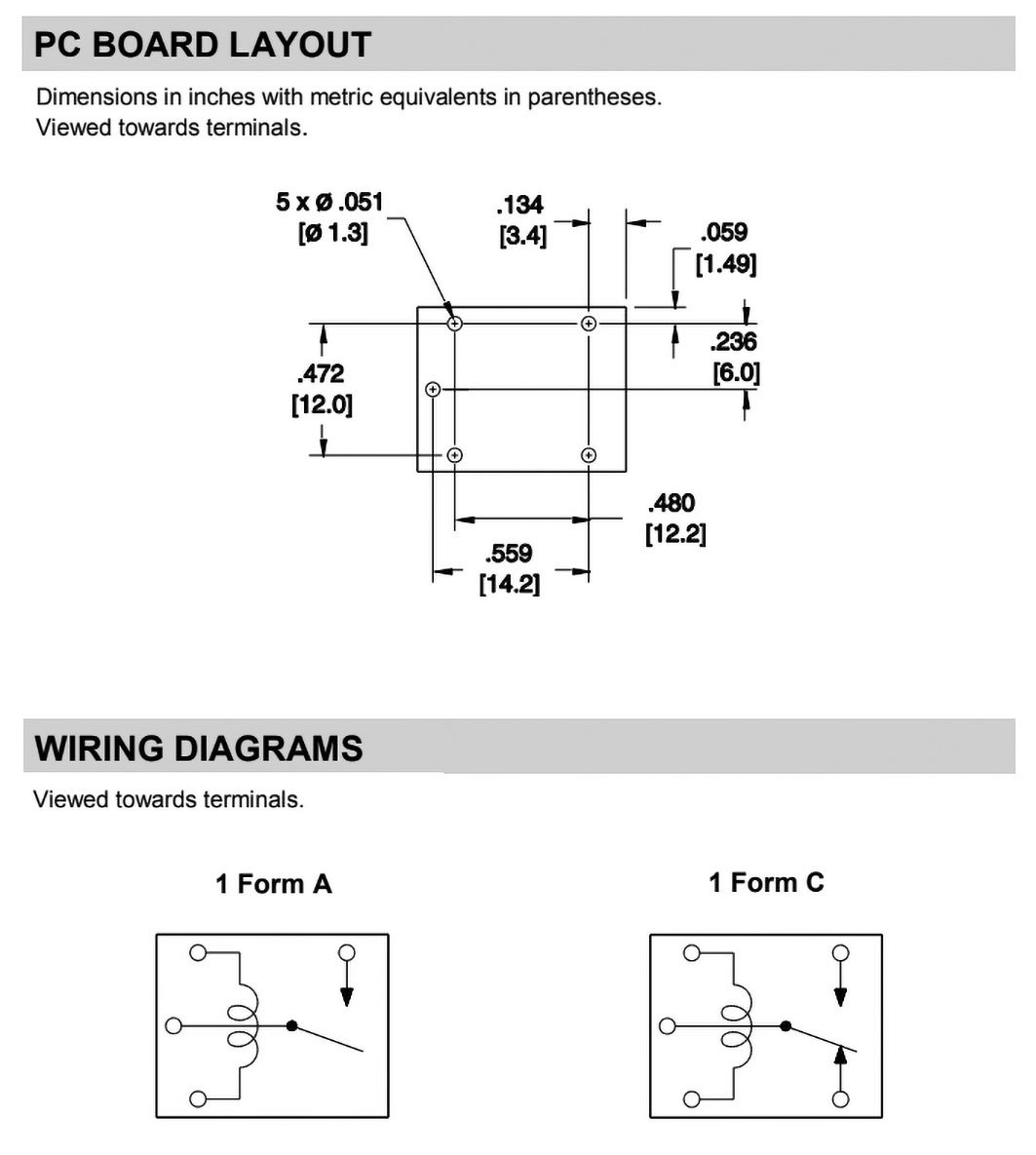

• Terminal pitch 2mm

Parametri

ZETTLER
DC18V
SPDT
10A/250VAC
10A/30VDC
uz pārslēgšanu
monostabilais
1
