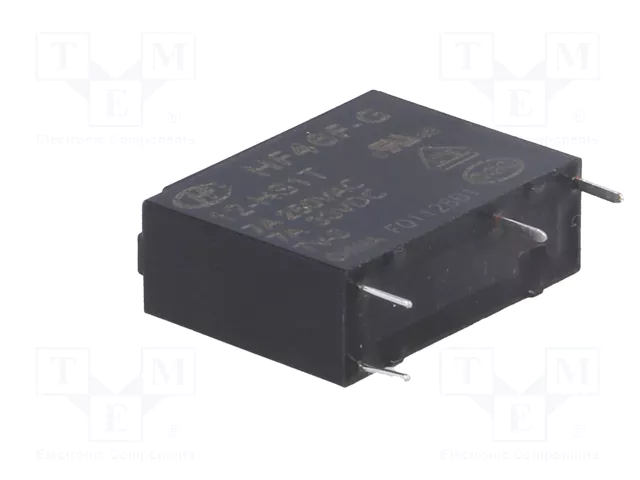

Apraksts

• Manufacturer HONGFA RELAY
• Type of relay electromagnetic
• Contacts configuration SPST-NO
• Contacts configuration
• Rated coil voltage 12V DC
• Contact current max. 10A
• AC contacts rating @R(at resistive load) 7A / 250V AC
• at resistive load
• DC contacts rating @R(at resistive load) 7A / 30V DC
• at resistive load
• Switched voltage max. 30V DC, max. 277V AC
• Relay variant subminiature

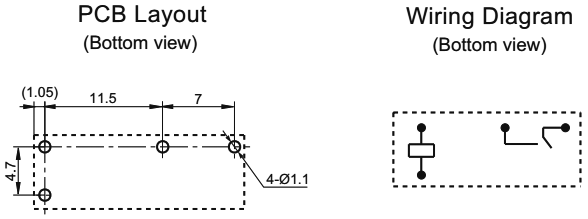

• Mounting PCB
• Coil resistance 720Ω
• Coil voltage min. 9V DC
• Coil voltage max. 15,6V DC
• Operate time 10ms

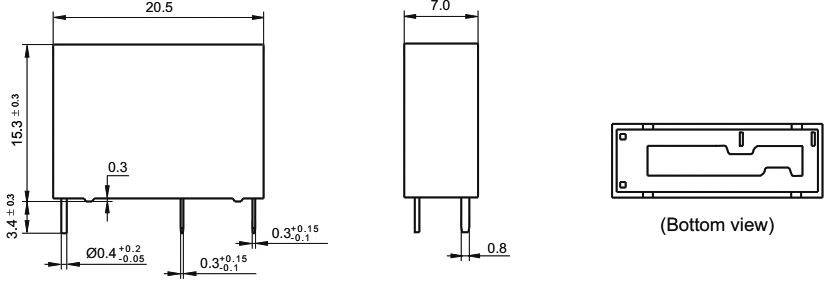

• Body dimensions 20,5x7,2x15,3mm
• Release time 10ms
• Coil power consumption 200mW
• Operating temperature -40...85°C
• Contact resistance 100mΩ
• Contact material AgSnO2
• Masa bruto3.02 g

Parametri

HONGFA RELAY
12VDC
SPST-NO
7A/250VAC
7A/30VDC
uz saslēgšanu
monostabilais
1
1

Papildu dokumentācija
