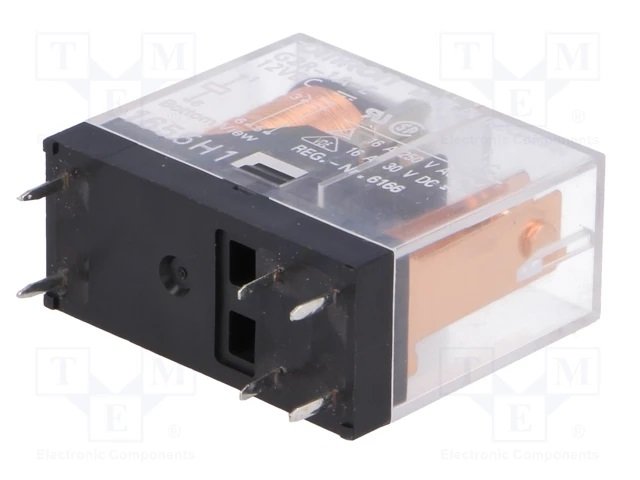

Relejs DC12V, SPST-NO, 16A/250VAC, 16A/24VDC, 272R(43.6mA), viens kontakts uz saslēgšanu, 29x13x25.5mm, OMRON
Relejs DC12V, SPST-NO, 16A/250VAC, 16A/24VDC, 272R(43.6mA), viens kontakts uz saslēgšanu, 29x13x25.5mm, OMRON
Relejs DC12V, SPST-NO, 16A/250VAC, 16A/24VDC, 272R(43.6mA), viens kontakts uz saslēgšanu, 29x13x25.5mm, OMRON
Relejs DC12V, SPST-NO, 16A/250VAC, 16A/24VDC, 272R(43.6mA), viens kontakts uz saslēgšanu, 29x13x25.5mm, OMRON Relejs DC12V, SPST-NO, 16A/250VAC, 16A/24VDC, 272R(43.6mA), viens kontakts uz saslēgšanu, 29x13x25.5mm, OMRON Relejs DC12V, SPST-NO, 16A/250VAC, 16A/24VDC, 272R(43.6mA), viens kontakts uz saslēgšanu, 29x13x25.5mm, OMRON

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Relejs DC12V, SPST-NO, 16A/250VAC, 16A/24VDC, 272R(43.6mA), viens kontakts uz saslēgšanu, 29x13x25.5mm, OMRON

Cena: 3.69 €
00009831
G2R-1A-E-12DC
6
  • Apraksts

    • Manufacturer OMRON OCB
    • Type of relay electromagnetic
    • Contacts configuration  SPST-NO
    • Rated coil voltage 12V DC
    • AC contacts rating @R  16A / 250V AC
    • (at resistive load)
    • DC contacts rating @R  16A / 30V DC
    • (at resistive load)
    • Contact current max. 16A
    • Switched voltage max. 125V DC,  max. 380V AC
    • Relay variant miniature
    • Mounting PCB
    • Operate time 15ms
    • Body dimensions 29x13x25.5mm
    • Release time 5ms
    • Mechanical durability 20000000 cycles
    • Operating temperature -40...70°C
    • Relay series G2R
    • Contact resistance 30mΩ
    • Terminal pitch 5mm
    • Coil current 43.6mA
    • Enclosure description standard seal
    • Output configuration see

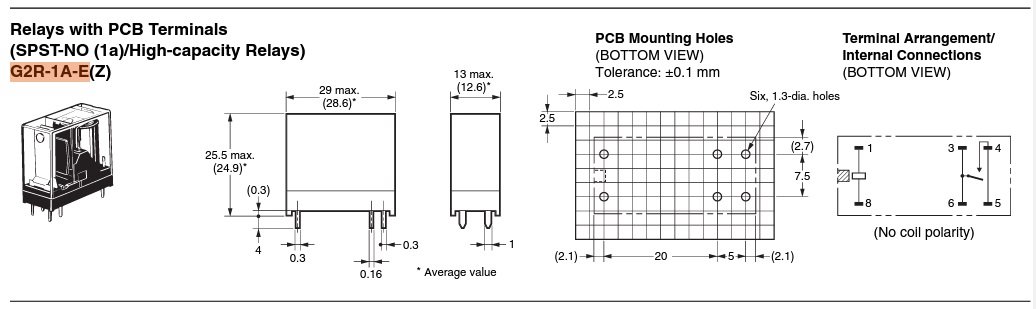

    • Dimensions see
    • Additional information
    • Gross weight: 16.04 g
    • Manufacturer part number: G2R-1A-E 12VDC

    Parametri

    OMRON
    12VDC
    SPST-NO
    16A/250VAC
    16A/24VDC
    uz saslēgšanu
    monostabilais
    1
    1
