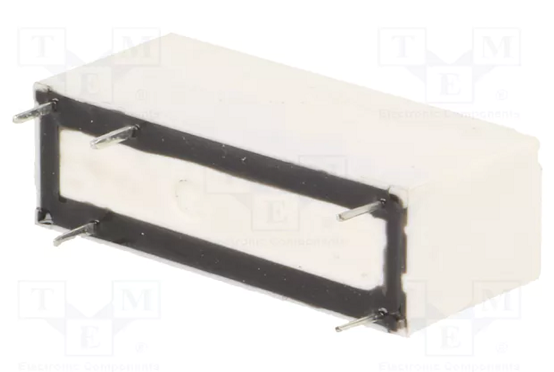

Relejs DC12V, SPDT, 8A/250VAC, 8A/28VDC, 620R(17.6mA), viens kontakts uz pārslēgšanu, 28.7x10.3x12.7mm, RELPOL

Cena: Zvanīt €
00029154
RM12N3011351012
2
  • Apraksts

    • Manufacturer RELPOL
    • Type of relay electromagnetic
    • Contacts configuration SPDT
    • Rated coil voltage 12V DC
    • Contact current max. 10A
    • AC contacts rating @R(at resistive load) 8A / 250V AC
    • DC contacts rating @R(at resistive load) 8A / 28V DC
    • Manufacturer series RM12N
    • Switched voltage max. 30V DC, max. 440V AC
    • Relay variant miniature
    • Mounting PCB
    • Coil resistance 620Ω
    • Coil voltage min. 8.4V DC
    • Coil voltage max. 15.6V DC
    • Operate time 10ms

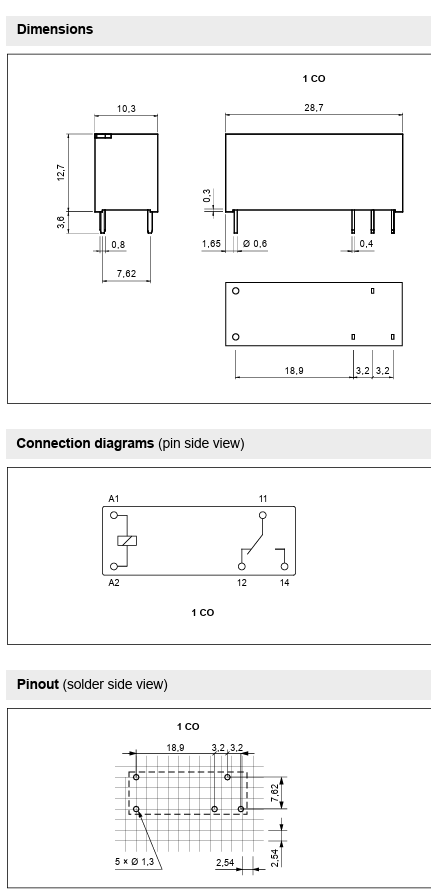

    • Body dimensions 28.7x10.3x12.7mm
    • Release time 5ms
    • Coil power consumption 220mW
    • IP rating IP67
    • Mechanical durability 100000000 cycles
    • Contact resistance 100mΩ
    • Electrical life 100000 cycles
    • Contact material AgSnO2
    • Terminal pitch 7.62mm
    • OEM number 2614941
    • Operating temperature -40...85°C

    Parametri

    RELPOL
    12VDC
    SPDT
    8A/250VAC
    8A/28VDC
    uz pārslēgšanu
    monostabilais
    1
    1
