Apraksts

• Manufacturer TE Connectivity
• Type of relay electromagnetic
• Contacts configuration  SPDT
• Rated coil voltage 12V DC
• AC contacts rating @R  5A / 250V AC
• (at resistive load)
• DC contacts rating @R  5A / 30V DC
• (at resistive load)
• Contact current max. 5A
• Switched voltage max. 300V DC,  max. 440V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 685Ω
• Operate time 5ms
• Body dimensions 20x10x10mm
• Release time 2ms
• Coil power consumption 200mW
• Mechanical durability 150000000 cycles
• Operating temperature -40...85°C
• Weight 5g
• Relay series PE
• Contact material AgNi 90/10
• Terminal pitch 7.62mm
• Coil current 17.5mA

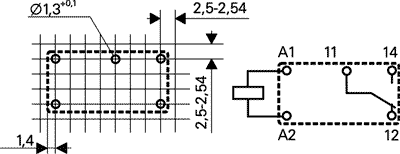

• Output configuration see
• Dimensions see
• Additional information
• Gross weight: 5 g
• Manufacturer part number: 2-1393219-0

Parametri

TE Connectivity
12VDC
SPDT
5A/250VAC
5A/30VDC
uz pārslēgšanu
monostabilais
1
1

Papildu dokumentācija
