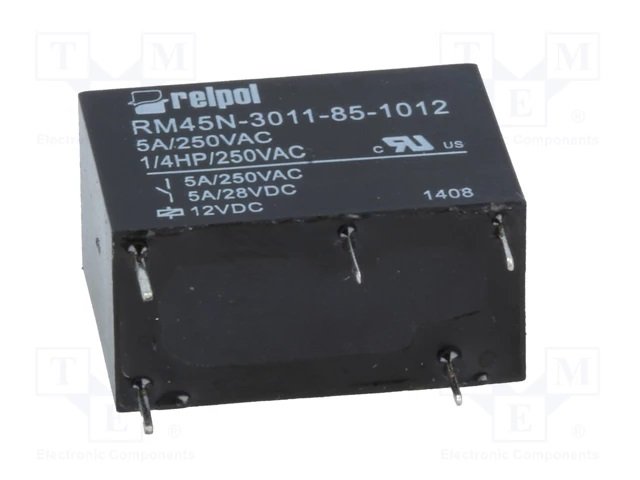

Apraksts

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 12V DC
• Contact current max. 5A
• AC contacts rating @R(at resistive load) 5A / 250V AC
• DC contacts rating @R(at resistive load) 5A / 28V DC
• Switched voltage max. 28V DC, max. 277V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 320Ω
• Coil voltage min. 9V DC
• Coil voltage max. 13.2V DC
• Operate time 8ms

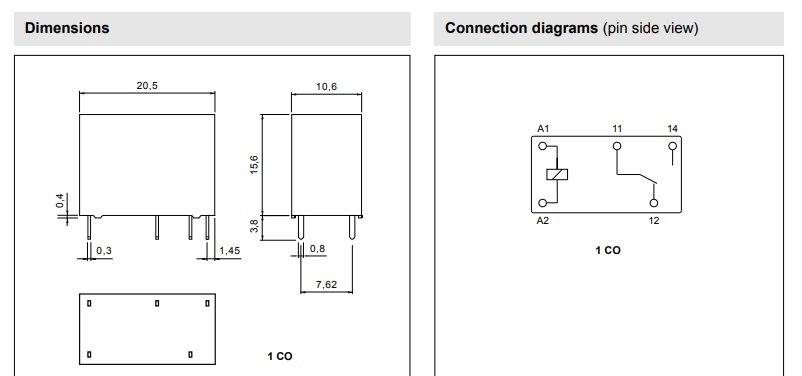

• Body dimensions 20.5x10.6x15.6mm
• Release time 5ms
• Coil power consumption 450mW
• IP rating IP64
• Mechanical durability 100000000 cycles
• Operating temperature -40...70°C
• Weight 7g
• Relay series RM45N
• Contact resistance 100mΩ
• Electrical life 100000 cycles
• Contact material AgSnO2
• Terminal pitch 7.62mm
• OEM number 2614936

Parametri

12VDC
SPDT
5A/250VAC
uz pārslēgšanu
1
monostabilais
1
RELPOL
5A/28VDC
