Apraksts

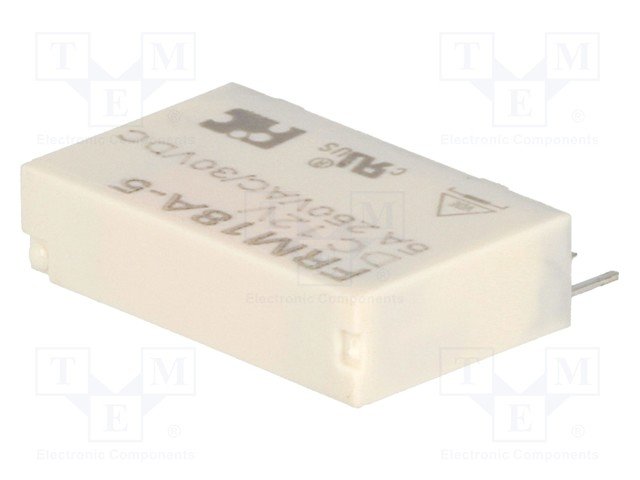

• Manufacturer FORWARD INDUSTRIAL CO.
• Type of relay electromagnetic
• Contacts configuration  SPST-NO
• Rated coil voltage 12V DC
• AC contacts rating @R  5A / 250V AC
• DC contacts rating @R  5A / 30V DC
• Contact current max. 5A
• Switched voltage max. 110V DC,  max. 250V AC
• Relay variant interface
• Mounting PCB
• Coil resistance 1.2kΩ

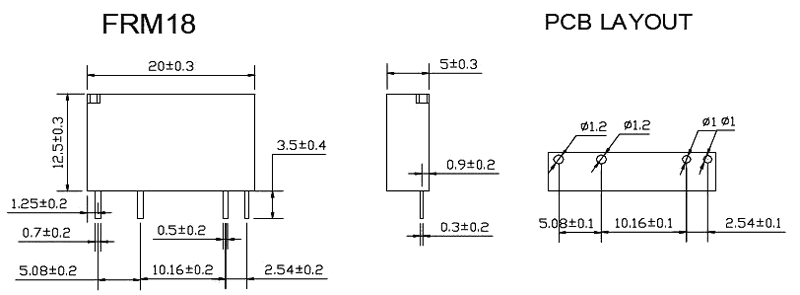

• Body dimensions 20x12.5x5mm
• Coil power consumption 120mW
• Mechanical durability 20000000 cycles
• Operating temperature -40...70°C
• Weight 3g
• Relay series FRM18
• Contact resistance 50mΩ
• Contact material silver alloy
• Terminal pitch 5mm
• Coil current 10mA
• Additional information
• Gross weight: 2.767 g
• Manufacturer part number: FRM18A-5 DC12V

Parametri

FORWARD INDUSTRIAL CO.
12VDC
SPDT
5A/250VAC
5A/30VDC
uz pārslēgšanu
1
monostabilais
1
